Diffraction project datasets pvnmt_8vka
- Resolution: 1.97 Å
- Space group: P 21 21 21
Uniprot website for A5K1A2
PDB website for 8VKA
PDB validation report for 8VKA
doi:10.18430/M38VKA
Project details

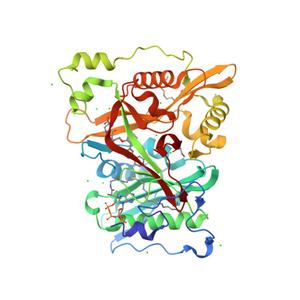

| Title | Crystal structure of Plasmodium vivax glycylpeptide N-tetradecanoyltransferase (N-myristoyltransferase, NMT) bound to myristoyl-CoA and inhibitor 9c |
| Authors | Fenwick, M.K., Staker, B.L., Phan, I.Q., Early, J., Myler, P.J., Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 58.34 x 119.28 x 173.76 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

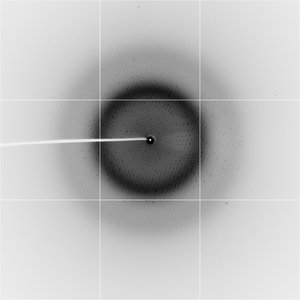

Dataset Pin11_7_#####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 180.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 92.0 |
| Phi [°] | 92.0 |
| Wavelength [Å] | 1.00003 |
| Experiment Date | 2022-07-01 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
