Diffraction project datasets pfld_8yjo
- Resolution: 1.8 Å
- Space group: P 1 21 1
Uniprot website for P32674
PDB website for 8YJO
PDB validation report for 8YJO
doi:10.18430/M38YJO
Project details

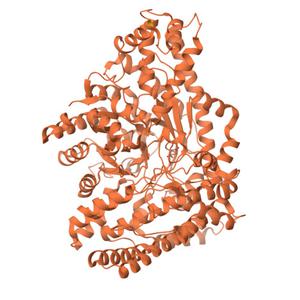

| Title | Structure of E. coli glycyl radical enzyme PflD with bound malonate |
| Authors | Xue, B., Wei, Y., Robinson, R.C., Yew, W.S., Zhang, Y. |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 80.30 x 127.66 x 89.75 |
| Unit cell angles [°] | 90.0, 107.2, 90.0 |

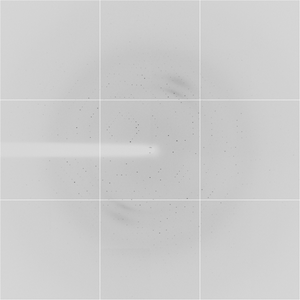

Dataset A1_1_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 280.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 179.999 |
| Phi [°] | 179.999 |
| Wavelength [Å] | 1.00000 |
| Equipment | BL13B1 |
