Diffraction project datasets nsad_4tno
- Resolution: 2.14 Å
- Space group: P 41 21 2
PDB website for 4TNO
PDB validation report for 4TNO
doi:10.18430/m34tno
Project details

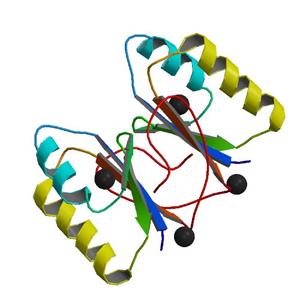

| Title | Hypothetical protein PF1117 from Pyrococcus Furiosus: Structure solved by sulfur-SAD using Swiss Light Source Data |
| Authors | Weinert, T., Waltersperger, S., Olieric, V., Panepucci, E., Chen, L., Rose, J.P., Wang, M., Wang, B.C., Southeast Collaboratory for Structural Genomics (SECSG) |
| R / Rfree | 0.25 / 0.31 |
| Unit cell edges [Å] | 47.21 x 47.21 x 82.28 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

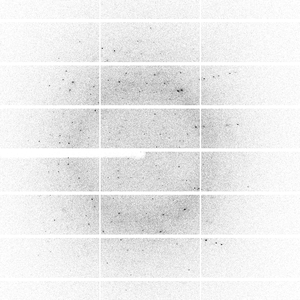

Dataset align_ca_1_#####.cbf details
| Number of frames | 14400 (1 - 14400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.03 |
| Wavelength [Å] | 2.06641 |
| Experiment Date | 2012-03-19 |
| Equipment | X06DA |

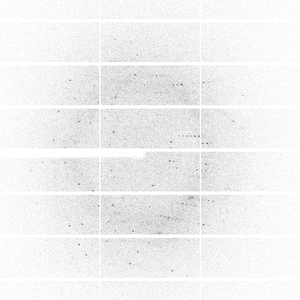

Dataset chi30_1_#####.cbf details
| Number of frames | 14400 (1 - 14400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.03 |
| Wavelength [Å] | 2.06641 |
| Experiment Date | 2012-03-19 |
| Equipment | X06DA |

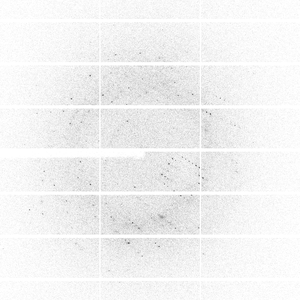

Dataset omega_1_#####.cbf details
| Number of frames | 14400 (1 - 14400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.03 |
| Wavelength [Å] | 2.06641 |
| Experiment Date | 2012-03-19 |
| Equipment | X06DA |

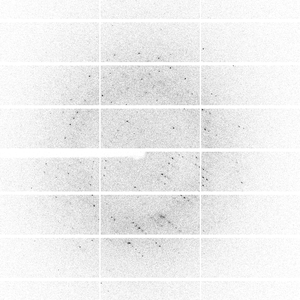

Dataset omega_2_#####.cbf details
| Number of frames | 14400 (1 - 14400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.03 |
| Wavelength [Å] | 2.06641 |
| Experiment Date | 2012-03-19 |
| Equipment | X06DA |
