Diffraction project datasets nnnn_9hg3
- Resolution: 2.3 Å
- Space group: P 1 21 1
Uniprot website for A0QYE8
PDB website for 9HG3
PDB validation report for 9HG3
doi:10.18430/M39HG3
Project details

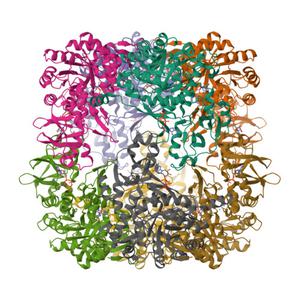

| Title | Crystal structure of M. smegmatis GMP reductase in complex with GMP and GTP. |
| Authors | Dolezal, M., Pichova, I. |
| R / Rfree | 0.25 / 0.27 |
| Unit cell edges [Å] | 113.08 x 145.93 x 146.32 |
| Unit cell angles [°] | 90.0, 95.9, 90.0 |

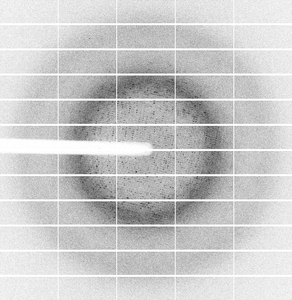

Dataset 9HG3_1_####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Distance [mm] | 373.3 |
| Oscillation width [°] | 0.10 |
| Omega [°] | 91.56 |
| Kappa / Chi [°] | 0.0012 |
| Phi [°] | 0.0042 |
| Wavelength [Å] | 0.91840 |
| Equipment | BL14.1 at BESSY II (Bessy II) |
