Diffraction project datasets exp286_8ft2
- Resolution: 1.6 Å
- Space group: P 43 21 2
Uniprot website for P00698
PDB website for 8FT2
PDB validation report for 8FT2
doi:10.18430/M38FT2
Project details

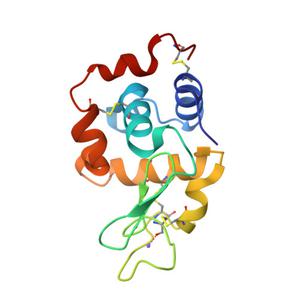

| Title | Crystal structure of hen egg white lysozyme |
| Authors | Lima, L.M.T.R., Ramos, N.G. |
| R / Rfree | 0.27 / 0.31 |
| Unit cell edges [Å] | 78.86 x 78.86 x 37.13 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset exp_286_1_##.img details
| Number of frames | 27 (1 - 27) |
| Distance [mm] | 61.0 |
| Omega [°] | 1.0 |
| Kappa / Chi [°] | 91.0 |
| Phi [°] | 176.0 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2021-03-08 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset exp_286_2_##.img details
| Number of frames | 37 (1 - 37) |
| Distance [mm] | 61.0 |
| Omega [°] | -22.0 |
| Kappa / Chi [°] | 91.0 |
| Phi [°] | 176.0 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2021-03-08 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset exp_286_3_##.img details
| Number of frames | 45 (1 - 45) |
| Distance [mm] | 61.0 |
| Omega [°] | 5.0 |
| Kappa / Chi [°] | -99.0 |
| Phi [°] | -90.0 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2021-03-08 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
