Diffraction project datasets exp211_8fst
- Resolution: 1.6 Å
- Space group: P 43 21 2
Uniprot website for P00698
PDB website for 8FST
PDB validation report for 8FST
doi:10.18430/M38FST
Project details

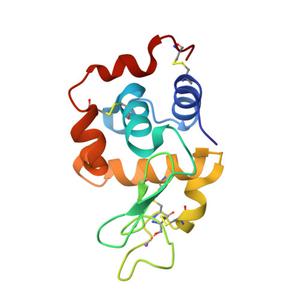

| Title | Crystal structure of hen egg white lysozyme |
| Authors | Lima, L.M.T.R., Ramos, N.G. |
| R / Rfree | 0.20 / 0.25 |
| Unit cell edges [Å] | 77.36 x 77.36 x 37.18 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset exp_211_1_##.img details
| Number of frames | 27 (1 - 27) |
| Distance [mm] | 61.0 |
| Omega [°] | -80.0 |
| Kappa / Chi [°] | -64.0 |
| Phi [°] | -148.0 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2020-12-10 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset exp_211_2_##.img details
| Number of frames | 41 (1 - 41) |
| Distance [mm] | 61.0 |
| Omega [°] | -43.0 |
| Kappa / Chi [°] | -64.0 |
| Phi [°] | -148.0 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2020-12-10 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
Dataset exp_211_3_##.img details
| Number of frames | 45 (1 - 45) |
| Distance [mm] | 61.0 |
| Omega [°] | 55.0 |
| Kappa / Chi [°] | -178.0 |
| Phi [°] | 120.0 |
| Wavelength [Å] | 1.54184 |
| Experiment Date | 2020-12-10 |
| Equipment | HOME_SOURCE at HOME_SOURCE (Home Source) |
