Diffraction project datasets data_9DBT
- Resolution: 3.4 Å
- Space group: P 2 21 21
Uniprot website for Q82452
PDB website for 9DBT
PDB validation report for 9DBT
doi:10.18430/M39DBT
Project details

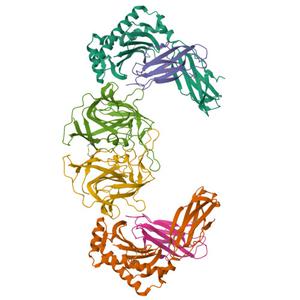

| Title | Crystal structure of human astrovirus 1 capsid spike bound to human neonatal Fc receptor |
| Authors | Lentz, A., DuBois, R.M. |
| R / Rfree | 0.21 / 0.26 |
| Unit cell edges [Å] | 87.00 x 153.00 x 255.36 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

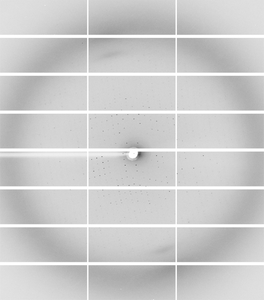

Dataset run_220_#####.cbf details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 425.0 |
| Oscillation width [°] | 1.00 |
| Omega [°] | 270.25 |
| Wavelength [Å] | 0.97741 |
| Experiment Date | 2023-11-11 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |

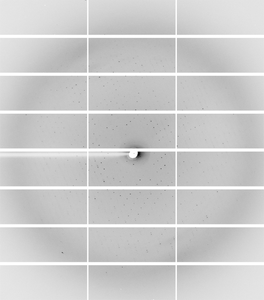

Dataset run_247_#####.cbf details
| Number of frames | 1440 (1 - 1440) |
| Distance [mm] | 400.0 |
| Oscillation width [°] | 0.25 |
| Omega [°] | 2.51 |
| Wavelength [Å] | 0.97741 |
| Experiment Date | 2023-11-11 |
| Equipment | 5.0.1 at ALS (Advanced Light Source) |
