Diffraction project datasets central_CC_empty_38el_38EL
- Resolution: 3.9 Å
- Space group: I 1 2 1
Uniprot website for P03856
PDB website for 38EL
PDB validation report for 38EL
doi:10.18430/M338EL
Project details

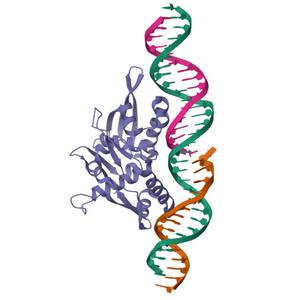

| Title | Isoreticular co-crystal 1 with symmetrical expanded duplex (31mer) containing insert sequence CCCGGCCGGA with unpaired poly-C tail |
| Authors | Slaughter, C.K., Shields, E.T., Magna, E.N., Snow, C.D. |
| R / Rfree | 0.23 / 0.27 |
| Unit cell edges [Å] | 74.68 x 130.52 x 131.50 |
| Unit cell angles [°] | 90.0, 90.4, 90.0 |

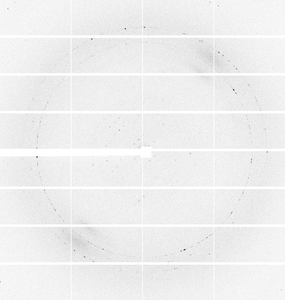

Dataset Pisces_CC_2b_1_######.cbf details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 457.4 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97920 |
| Equipment | 24-ID-E at APS (Advanced Photon Source) |
