Diffraction project datasets buama_00144_b_b1_6n2l

  • Resolution: 1.85 Å
  • Space group: C 2 2 21
Download all images (1.4 GB)

PDB website for 6N2L
PDB validation report for 6N2L

doi:10.18430/m36n2l

Project details

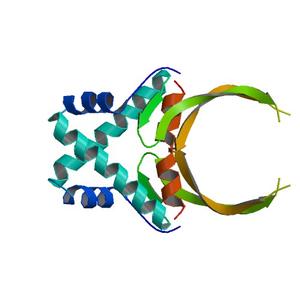

Title Crystal structure of a histone family protein DNA-binding protein from Burkholderia ambifaria
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.25 / 0.30
Unit cell edges [Å] 38.21 x 71.40 x 76.73
Unit cell angles [°] 90.0, 90.0, 90.0

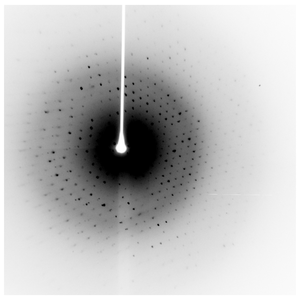

Dataset 272216h3_x_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -80.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

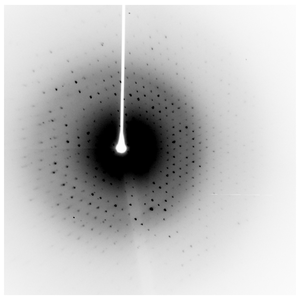

Dataset 272216h3_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -80.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

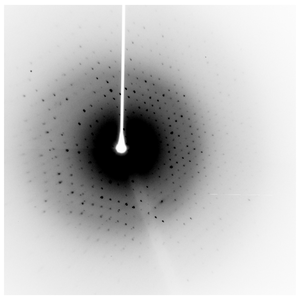

Dataset 272706b8_z_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -80.0
Kappa / Chi [°] 20.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
