Diffraction project datasets apc105002_3QOE
- Method: MIR
- Resolution: 3.0 Å
- Space group: P 31
PDB website for 3QOE
PDB validation report for 3QOE
doi:10.18430/M33QOE
Project details

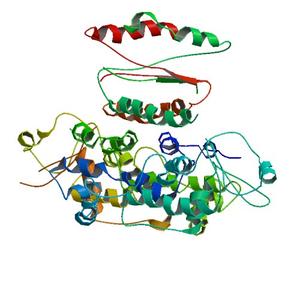

| Title | Crystal Structure of Heterocyst Differentiation Protein, HetR from Fischerella mv11 |
| Authors | Kim, Y., Joachimiak, G., Ye, Z., Binkowski, T.A., Zhang, R., Gornicki, P., Callahan, S.M., Hess, W.R., Haselkorn, R., Joachimiak, A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.25 |
| Unit cell edges [Å] | 92.93 x 92.93 x 97.65 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

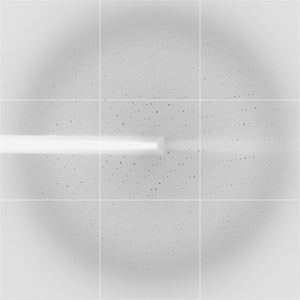

Dataset mv11-24Ta-pd-c4g.####.img details
| Number of frames | 220 (1 - 220) |
| Distance [mm] | 450.1 |
| Oscillation width [°] | 1.00 |
| Phi [°] | -100.0 |
| Wavelength [Å] | 0.97910 |
| Equipment | 19-ID at APS (Advanced Photon Source) |
