Diffraction project datasets apc100605_3TVA

  • Method: SAD
  • Resolution: 2.15 Å
  • Space group: P 41 2 2
Download all images (1.2 GB)

PDB website for 3TVA

doi:10.18430/M33TVA

Project details

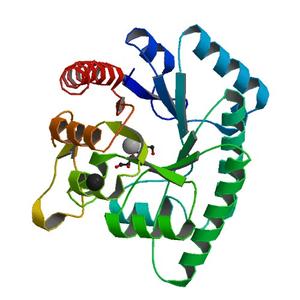

Title Crystal Structure of Xylose isomerase domain protein from Planctomyces limnophilus
Authors Kim, Y., Wu, R., Bearden, J., Joachimiak, A.
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 105.32 x 105.32 x 178.94
Unit cell angles [°] 90.0, 90.0, 90.0

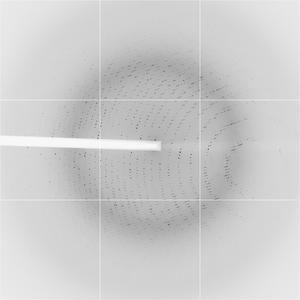

Dataset m2e11g-peak.####.img details

Number of frames 133 (1 - 133)
Distance [mm] 299.9
Oscillation width [°] 1.00
Phi [°] -110.0
Wavelength [Å] 0.97915
Equipment 19-ID at APS (Advanced Photon Source)
