Diffraction project datasets amrz_3qoq
- Resolution: 3.1 Å
- Space group: I 4 2 2
Uniprot website for Q9RPY7
PDB website for 3QOQ
PDB validation report for 3QOQ
doi:10.18430/M33QOQ
Project details

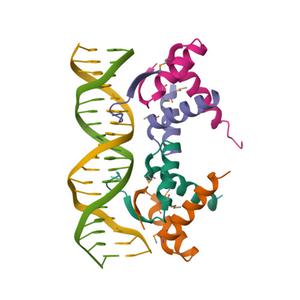

| Title | Crystal Structure of the Transcription Factor AmrZ in Complex with the 18 Base Pair amrZ1 Binding Site |
| Authors | Pryor Jr., E.E., Wozniak, D.J., Hollis, T. |
| R / Rfree | 0.26 / 0.30 |
| Unit cell edges [Å] | 129.47 x 129.47 x 152.55 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

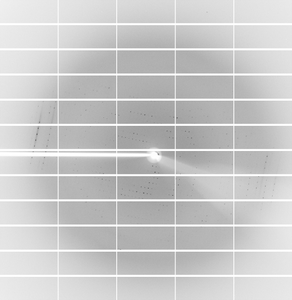

Dataset Be1-10_4_#####.cbf details
| Number of frames | 372 (1 - 372) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 0.50 |
| Omega [°] | 359.9999 |
| Kappa / Chi [°] | 60.0 |
| Wavelength [Å] | 1.10000 |
| Experiment Date | 2014-06-06 |
| Equipment | X25 at NSLS (National Synchrotron Light Source) |
