Diffraction project datasets ZP_02430688_4oh1
Project details
| Title |

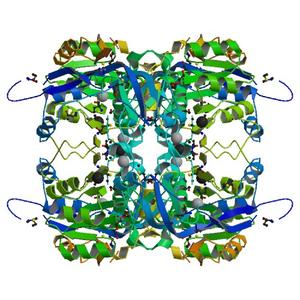

Crystal structure of a putative zinc-binding dehydrogenase (gutB) from Clostridium scindens ATCC 35704 at 2.00 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| R / Rfree |
0.17 / 0.22 |
| Unit cell edges [Å] |
63.87 x
85.60 x
149.09
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

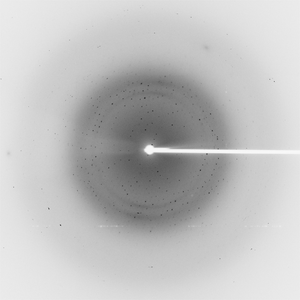

Dataset 201069_1_E1_#####.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
0.97939 |
| Experiment Date |
2013-12-13 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

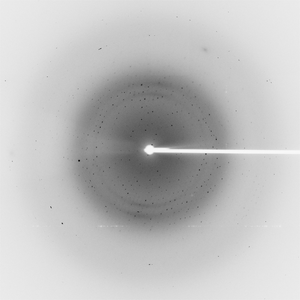

Dataset 201069_1_E2_#####.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
0.96109 |
| Experiment Date |
2013-12-13 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

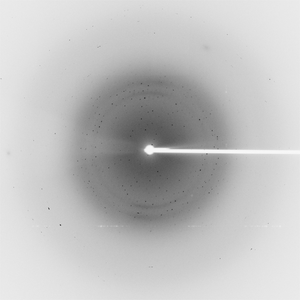

Dataset 201069_2_#####.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
0.97919 |
| Experiment Date |
2013-12-13 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

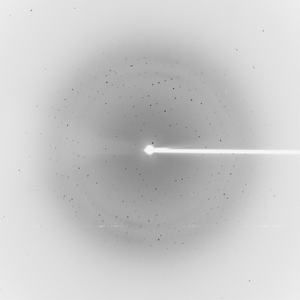

Dataset 201069_3_#####.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
1.29146 |
| Experiment Date |
2013-12-13 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
Dataset 201069_4_#####.mccd details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
270.0 |
| Oscillation width [°] |
0.50 |
| Phi [°] |
308.0 |
| Wavelength [Å] |
1.27814 |
| Experiment Date |
2013-12-13 |
| Equipment |
BL14-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
