Diffraction project datasets YEL038W_2g80

  • Method: Molecular Replacement
  • Resolution: 2.28 Å
  • Space group: P 1 21 1
Download all images (3.4 GB)

PDB website for 2G80
PDB validation report for 2G80

doi:10.18430/M32G80

Project details

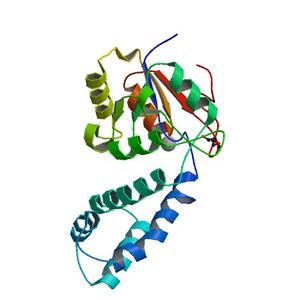

Title Crystal structure of UTR4 protein (Unknown transcript 4 protein) (yel038w) from Saccharomyces cerevisiae at 2.28 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.18 / 0.23
Unit cell edges [Å] 74.69 x 102.02 x 77.23
Unit cell angles [°] 90.0, 92.7, 90.0

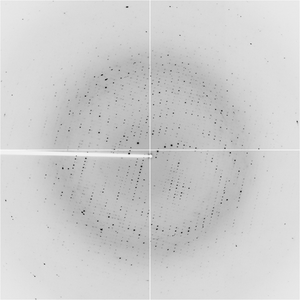

Dataset T3527_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 65.0
Wavelength [Å] 0.97967
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)

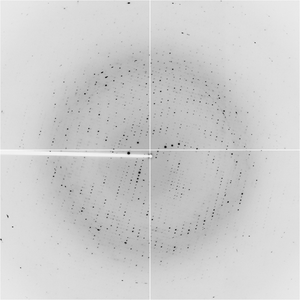

Dataset T3527_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 65.0
Wavelength [Å] 1.00000
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)

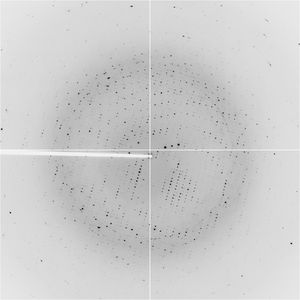

Dataset T3527_1_E3_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 65.0
Wavelength [Å] 0.97949
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)

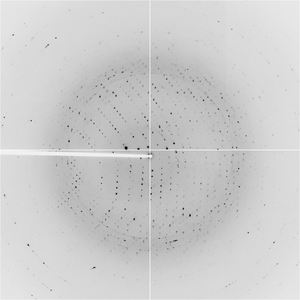

Dataset T3527_2_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 155.0
Wavelength [Å] 0.97949
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)

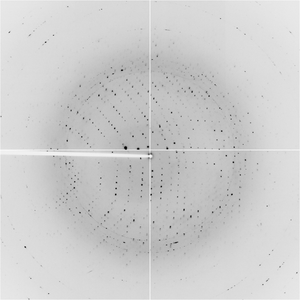

Dataset T3527_2_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 155.0
Wavelength [Å] 1.00000
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)

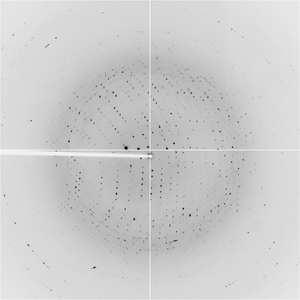

Dataset T3527_2_E3_###.img details

Number of frames 122 (1 - 122)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 155.0
Wavelength [Å] 0.97949
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)

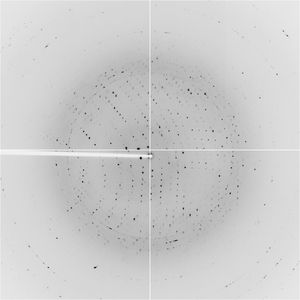

Dataset T3527_3_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 225.0
Oscillation width [°] 0.50
Phi [°] 155.0
Wavelength [Å] 0.97966
Experiment Date 2004-09-26
Equipment 8.2.1 at ALS (Advanced Light Source)
