Diffraction project datasets XX01ZVNS2B_29hn
- Resolution: 1.774 Å
- Space group: P 43 2 2
Uniprot website for Q32ZE1
PDB website for 29HN
PDB validation report for 29HN
doi:10.18430/M329HN
Project details
| Title | Crystal structure of Zika virus NS2B-NS3 protease determined via sulfur phasing |
| Authors | Marples, P.G., Duman, R., Ebrahim, A., Chinn, C.A., Cooper, M.R., Keates, T., V.Chandran, A., Ni, X., Wang, S., Williams, E., Koekemoer, L., Fairhead, M., Wagner, A., Shotton, E.J., Aschenbrenner, J.C., von Delft, F., Open Bind Consortium |
| R / Rfree | 0.22 / 0.27 |
| Unit cell edges [Å] | 42.54 x 42.54 x 215.37 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

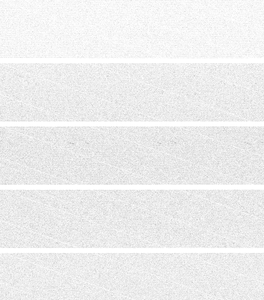

Dataset data_1_#####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Oscillation width [°] | 0.10 |
| Omega [°] | -180.0 |
| Wavelength [Å] | 2.75520 |
| Experiment Date | 2026-01-28 |
| Equipment | I23 |

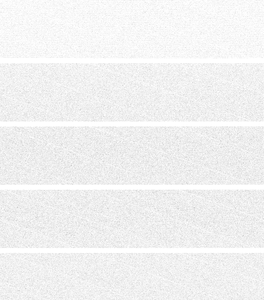

Dataset data_2_#####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Oscillation width [°] | 0.10 |
| Omega [°] | -180.0 |
| Kappa / Chi [°] | -20.0 |
| Phi [°] | -100.0 |
| Wavelength [Å] | 2.75520 |
| Experiment Date | 2026-01-28 |
| Equipment | I23 |

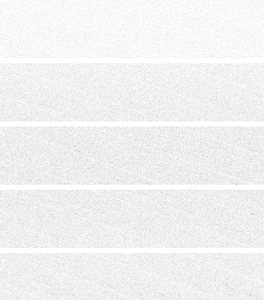

Dataset data_3_#####.cbf details
| Number of frames | 3600 (1 - 3600) |
| Oscillation width [°] | 0.10 |
| Omega [°] | -180.0 |
| Kappa / Chi [°] | -20.0 |
| Phi [°] | 100.0 |
| Wavelength [Å] | 2.75520 |
| Experiment Date | 2026-01-28 |
| Equipment | I23 |
