Diffraction project datasets WT4514D_3v4m

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 65 2 2
Download all images (2.6 GB)

PDB website for 3V4M

doi:10.18430/M33V4M

Project details

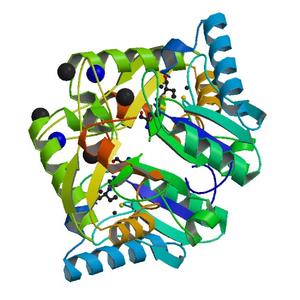

Title Crystal structure of a RNA binding domain of a U2 small nuclear ribonucleoprotein auxiliary factor 2 (U2AF) from Mus musculus at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL)
R / Rfree 0.18 / 0.21
Unit cell edges [Å] 60.19 x 60.19 x 239.69
Unit cell angles [°] 90.0, 90.0, 120.0

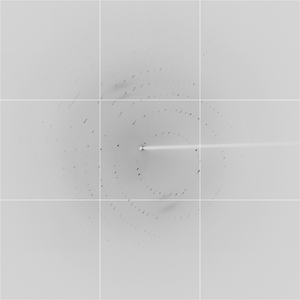

Dataset 169782_1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 200.0
Wavelength [Å] 0.97930
Experiment Date 2011-09-08
Equipment 8.2.2 at ALS (Advanced Light Source)

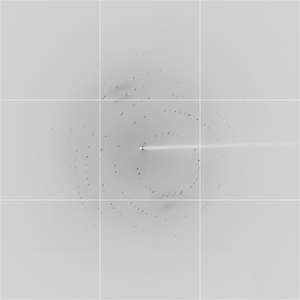

Dataset 169782_2_###.img details

Number of frames 300 (1 - 300)
Distance [mm] 250.0
Oscillation width [°] 0.30
Phi [°] 200.0
Wavelength [Å] 0.95370
Experiment Date 2011-09-08
Equipment 8.2.2 at ALS (Advanced Light Source)
