Diffraction project datasets WT4153G_4fss

  • Method: MAD
  • Resolution: 2.25 Å
  • Space group: P 61 2 2
Download all images (2.2 GB)

PDB website for 4FSS
PDB validation report for 4FSS

doi:10.18430/M34FSS

Project details

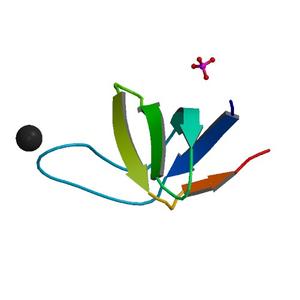

Title Crystal structure of a RAS p21 protein activator (RASA1) from Homo sapiens at 2.25 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL)
Bioentity None
R / Rfree 0.21 / 0.24
Unit cell edges [Å] 82.22 x 82.22 x 157.21
Unit cell angles [°] 90.0, 90.0, 120.0

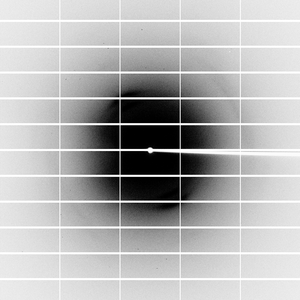

Dataset 174308_1_E1_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97968
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

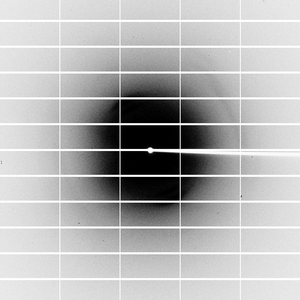

Dataset 174308_1_E2_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 174308_2_#####.cbf details

Number of frames 240 (1 - 240)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 180.0
Wavelength [Å] 0.97901
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
