Diffraction project datasets WT4153C_4e6r

  • Method: MAD
  • Resolution: 2.2 Å
  • Space group: P 65 2 2
Download all images (6.0 GB)

PDB website for 4E6R
PDB validation report for 4E6R

doi:10.18430/M34E6R

Project details

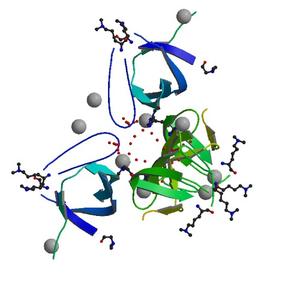

Title Crystal structure of a Cytoplasmic protein NCK2 (NCK2) from Homo sapiens at 2.20 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL)
Bioentity None
R / Rfree 0.20 / 0.23
Unit cell edges [Å] 108.40 x 108.40 x 68.20
Unit cell angles [°] 90.0, 90.0, 120.0

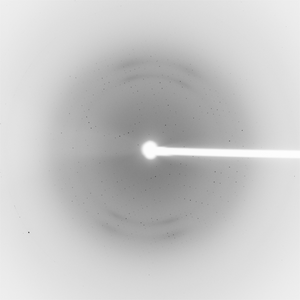

Dataset 174571_1_E1_#####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 287.0
Wavelength [Å] 0.97949
Experiment Date 2012-01-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

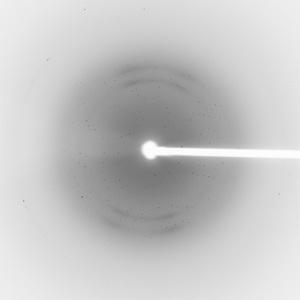

Dataset 174571_1_E2_#####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 287.0
Wavelength [Å] 0.91837
Experiment Date 2012-01-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

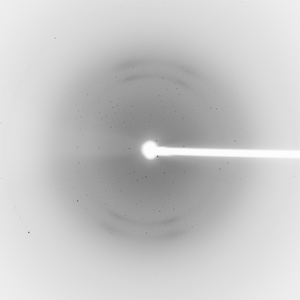

Dataset 174571_2_#####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 287.0
Wavelength [Å] 0.97929
Experiment Date 2012-01-12
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
