Diffraction project datasets WT2292B_4e2e
- Method: SAD
- Resolution: 2.25 Å
- Space group: I 2 2 2
PDB website for 4E2E
PDB validation report for 4E2E
doi:10.18430/M34E2E
Project details

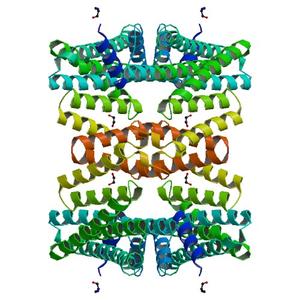

| Title | Crystal structure of a tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein, gamma polypeptide (YWHAG) from Homo sapiens at 2.25 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 60.99 x 78.51 x 122.13 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

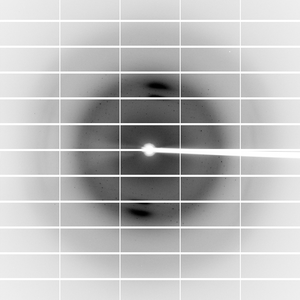

Dataset 174211_1_#####.cbf details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 330.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97860 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

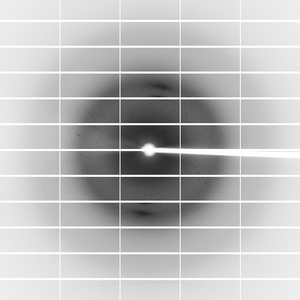

Dataset 174211_2_#####.cbf details
| Number of frames | 100 (1 - 100) |
| Distance [mm] | 330.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 300.5 |
| Wavelength [Å] | 0.97860 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
