Diffraction project datasets WT2292A_4dnk
Project details
| Title |

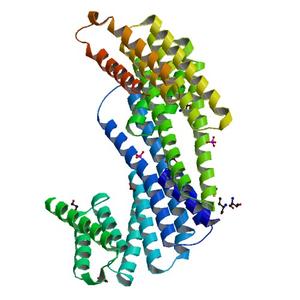

Crystal structure of a tyrosine 3-monooxygenase/tryptophan 5-monooxygenase activation protein, beta polypeptide (YWHAB) from homo sapiens at 2.20 A resolution. |
| Authors |
Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.23 |
| Unit cell edges [Å] |
52.14 x
122.85 x
55.26
|
| Unit cell angles [°] |
90.0,
114.0,
90.0
|

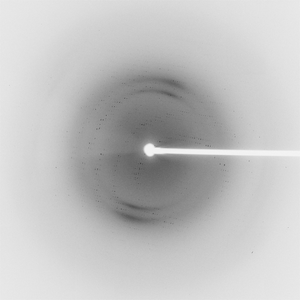

Dataset 172990_1_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
39.0 |
| Wavelength [Å] |
0.97946 |
| Experiment Date |
2011-12-01 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

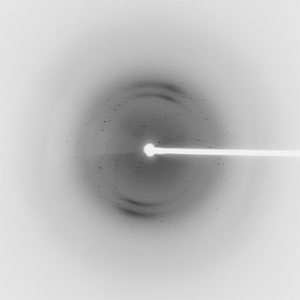

Dataset 172990_1_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
39.0 |
| Wavelength [Å] |
0.91162 |
| Experiment Date |
2011-12-01 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

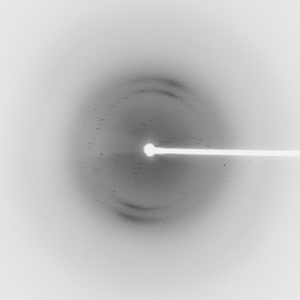

Dataset 172990_2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
280.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
39.0 |
| Wavelength [Å] |
0.97932 |
| Experiment Date |
2011-12-01 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
