Diffraction project datasets WT20695A_4lir
Project details
| Title |

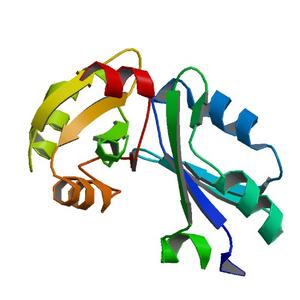

Crystal structure of a nucleoporin 35kDa (NUP35) from Homo sapiens at 2.46 A resolution |
| Authors |
JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG), Partnership for T-Cell Biology (TCELL) |
| Bioentity |
None |
| R / Rfree |
0.19 / 0.21 |
| Unit cell edges [Å] |
70.59 x
70.59 x
160.19
|
| Unit cell angles [°] |
90.0,
90.0,
120.0
|

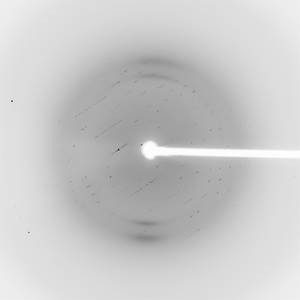

Dataset 174333_1_E1_#####.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.97949 |
| Experiment Date |
2012-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

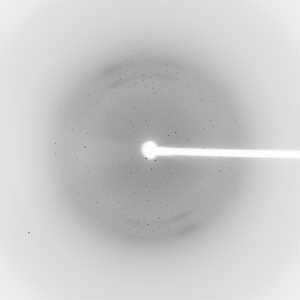

Dataset 174333_1_E1_#####.mccd details
| Number of frames |
24 (251 - 274) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Wavelength [Å] |
0.97949 |
| Experiment Date |
2012-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

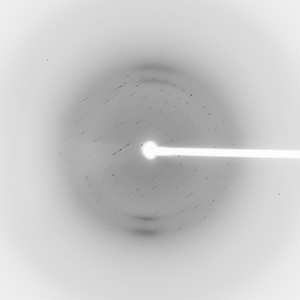

Dataset 174333_1_E2_#####.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2012-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

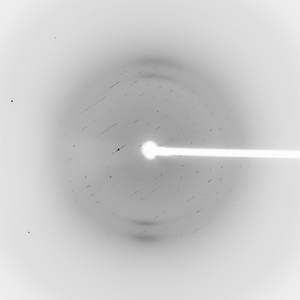

Dataset 174333_2_#####.mccd details
| Number of frames |
60 (1 - 60) |
| Distance [mm] |
350.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
250.0 |
| Wavelength [Å] |
0.97929 |
| Experiment Date |
2012-01-12 |
| Equipment |
BL9-2
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
