Diffraction project datasets WT20665A_4dwf

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: P 21 21 2
Download all images (8.1 GB)

PDB website for 4DWF
PDB validation report for 4DWF

doi:10.18430/M34DWF

Project details

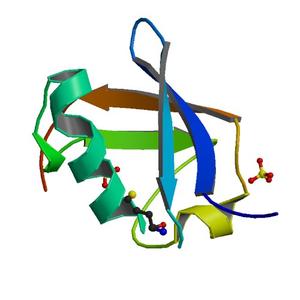

Title Crystal structure of a HLA-B associated transcript 3 (BAT3) from Homo sapiens at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL)
Bioentity None
R / Rfree 0.18 / 0.24
Unit cell edges [Å] 61.32 x 74.09 x 43.12
Unit cell angles [°] 90.0, 90.0, 90.0

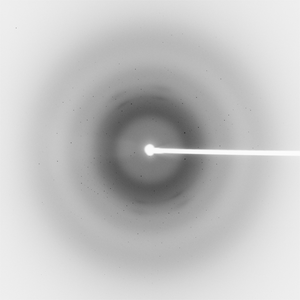

Dataset 173022_1_E1_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 330.0
Wavelength [Å] 0.97949
Experiment Date 2011-12-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

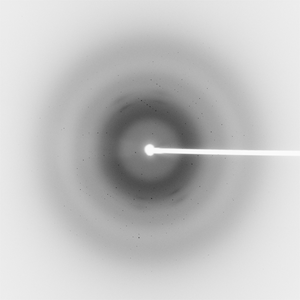

Dataset 173022_1_E2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 330.0
Wavelength [Å] 0.91162
Experiment Date 2011-12-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

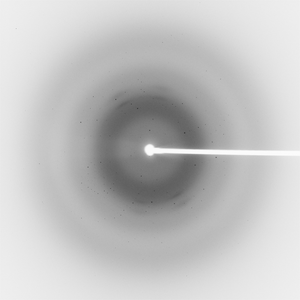

Dataset 173022_2_####.mccd details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 0.50
Phi [°] 330.0
Wavelength [Å] 0.97903
Experiment Date 2011-12-01
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
