Diffraction project datasets WT20613D_3uwt

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 31 2 1
Download all images (2.3 GB)

PDB website for 3UWT
PDB validation report for 3UWT

doi:10.18430/M33UWT

Project details

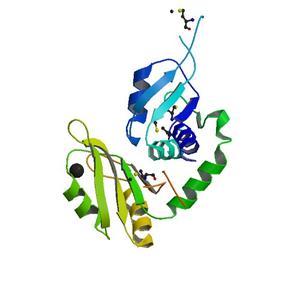

Title Crystal structure of a RNA binding domain of poly-U binding splicing factor 60KDa (PUF60) from Homo sapiens at 2.50 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL)
Bioentity None
R / Rfree 0.20 / 0.24
Unit cell edges [Å] 64.17 x 64.17 x 80.34
Unit cell angles [°] 90.0, 90.0, 120.0

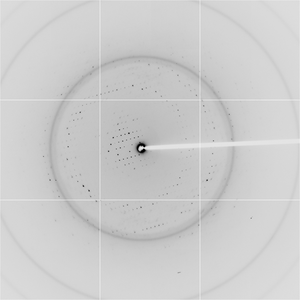

Dataset 170415_1_E1_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 7.0
Wavelength [Å] 0.97960
Experiment Date 2011-10-16
Equipment 8.2.2 at ALS (Advanced Light Source)

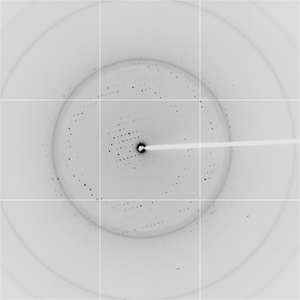

Dataset 170415_1_E2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 7.0
Wavelength [Å] 0.95370
Experiment Date 2011-10-16
Equipment 8.2.2 at ALS (Advanced Light Source)

Dataset 170415_2_###.img details

Number of frames 120 (1 - 120)
Distance [mm] 350.0
Oscillation width [°] 1.00
Phi [°] 7.0
Wavelength [Å] 0.97930
Experiment Date 2011-10-16
Equipment 8.2.2 at ALS (Advanced Light Source)
