Diffraction project datasets WT2001G_3uf4

  • Method: Molecular Replacement
  • Resolution: 1.98 Å
  • Space group: C 1 2 1
Download all images (3.8 GB)

PDB website for 3UF4
PDB validation report for 3UF4

doi:10.18430/M33UF4

Project details

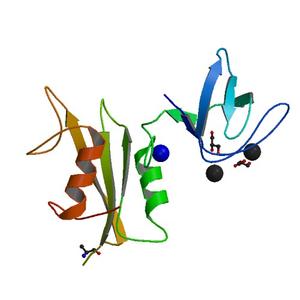

Title Crystal structure of a SH3 and SH2 domains of FYN protein (Proto-concogene Tyrosine-protein kinase Fyn) from Mus musculus at 1.98 A resolution
Authors Joint Center for Structural Genomics (JCSG), Partnership for T-Cell Biology (TCELL)
Bioentity None
R / Rfree 0.20 / 0.22
Unit cell edges [Å] 138.22 x 35.96 x 43.96
Unit cell angles [°] 90.0, 93.6, 90.0

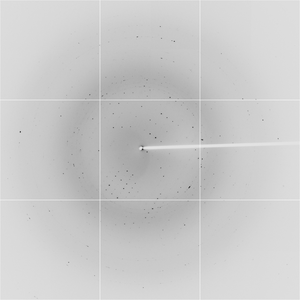

Dataset 169771_1_E1_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 119.0
Wavelength [Å] 0.97960
Experiment Date 2011-09-08
Equipment 8.2.2 at ALS (Advanced Light Source)

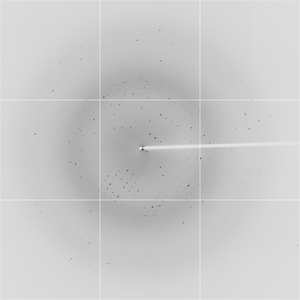

Dataset 169771_1_E2_###.img details

Number of frames 180 (1 - 180)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 119.0
Wavelength [Å] 0.95370
Experiment Date 2011-09-08
Equipment 8.2.2 at ALS (Advanced Light Source)

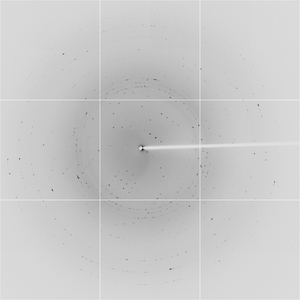

Dataset 169771_2_###.img details

Number of frames 240 (1 - 240)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 119.0
Wavelength [Å] 0.97930
Experiment Date 2011-09-08
Equipment 8.2.2 at ALS (Advanced Light Source)
