Diffraction project datasets WS20613E_WT4514D_5cxt

  • Method: Molecular Replacement
  • Resolution: 2.2 Å
  • Space group: P 32
Download all images (7.7 GB)

PDB website for 5CXT

doi:10.18430/M35CXT

Project details

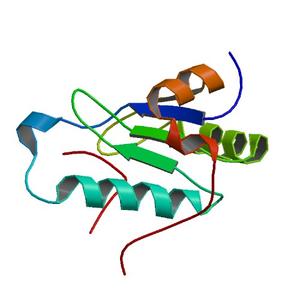

Title Crystal structure of a RNA-binding protein 39 (RBM39) in complex with fragment of splicing factor (U2AF) from Unknown at 2.20 A resolution
Authors Stepanyuk, G.A., Serrano, P., Peralta, E., Farr, C.L., Axelrod, H.L., Geralt, M., Das, D., Chiu, H.J., Jaroszewski, L., Deacon, A.M., Lesley, S.A., Elsliger, M.A., Godzik, A., Wilson, I.A., Wuthrich, K., Salomon, D.R., Williamson, J.R.
R / Rfree 0.17 / 0.19
Unit cell edges [Å] 127.28 x 127.28 x 78.86
Unit cell angles [°] 90.0, 90.0, 120.0

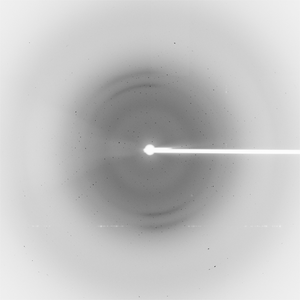

Dataset 200500_1_#####.mccd details

Number of frames 480 (1 - 480)
Distance [mm] 300.0
Oscillation width [°] 0.25
Phi [°] 63.0
Wavelength [nm] 1.00000
Experiment Date 2013-11-15
Equipment BL14-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
