Diffraction project datasets UP20725R_4epz
- Method: SAD
- Resolution: 1.68 Å
- Space group: C 2 2 21
PDB website for 4EPZ
PDB validation report for 4EPZ
doi:10.18430/M34EPZ
Project details

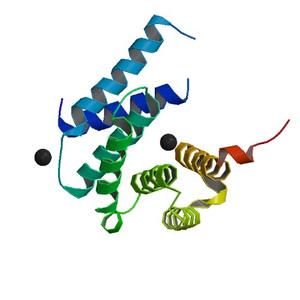

| Title | Crystal structure of a transcription anti-terminator antagonist UpxZ (BACUNI_04315) from Bacteroides uniformis ATCC 8492 at 1.68 A resolution |
| Authors | JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.20 |
| Unit cell edges [Å] | 42.25 x 81.11 x 105.70 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |
Dataset 179667_1_#####.cbf details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 320.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 296.0 |
| Wavelength [Å] | 0.97868 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
