Diffraction project datasets TrvaA_01033_d_B1_9mi2
- Resolution: 1.8 Å
- Space group: C 1 2 1
Uniprot website for A2EU62
PDB website for 9MI2
PDB validation report for 9MI2
doi:10.18430/M39MI2
Project details

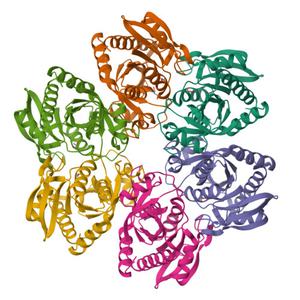

| Title | Crystal structure of Purine nucleoside phosphorylase from Trichomonas vaginalis (C2 form) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.16 / 0.20 |
| Unit cell edges [Å] | 170.27 x 50.36 x 175.49 |
| Unit cell angles [°] | 90.0, 98.8, 90.0 |

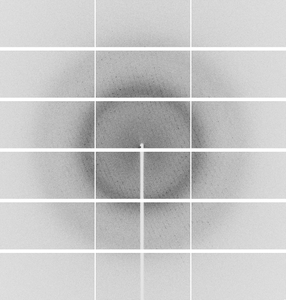

Dataset PSL-1411_4726_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
