Diffraction project datasets TrvaA_00834_a_UX1-pyruvate_8ur2
- Resolution: 1.9 Å
- Space group: I 41
Uniprot website for A2DXT4
PDB website for 8UR2
PDB validation report for 8UR2
doi:10.18430/m38ur2
Project details

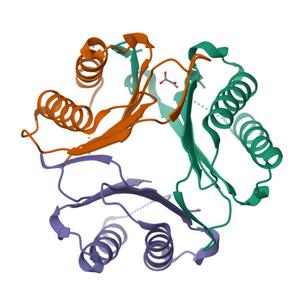

| Title | Crystal Structure of macrophage migration inhibitory factor (MIF) from Trichomonas vaginalis (I41 form) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 118.39 x 118.39 x 106.66 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

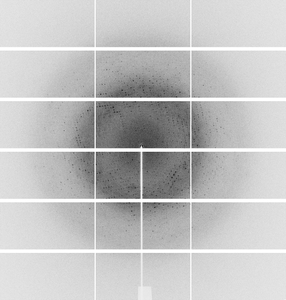

Dataset PSL-0111_2145_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 160.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97949 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
