Diffraction project datasets TrvaA_00834_a_UX1-apo_8ur4
- Resolution: 2.55 Å
- Space group: I 41 2 2
Uniprot website for A2DXT4
PDB website for 8UR4
PDB validation report for 8UR4
doi:10.18430/m38ur4
Project details

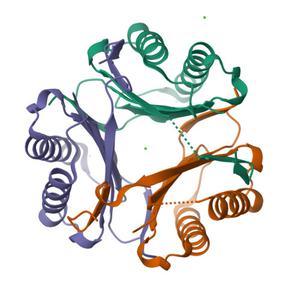

| Title | Crystal Structure of macrophage migration inhibitory factor (MIF) from Trichomonas vaginalis (I4122 form) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.25 / 0.28 |
| Unit cell edges [Å] | 109.87 x 109.87 x 125.88 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

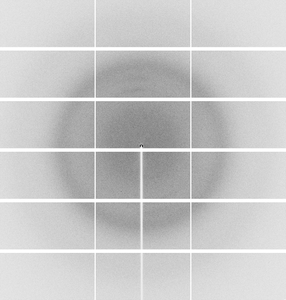

Dataset PSL-0107_2133_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.20 |
| Wavelength [Å] | 0.97949 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
