Diffraction project datasets TrvaA_00429_d_B1-FBP_9mea
- Resolution: 2.83 Å
- Space group: P 43 21 2
Uniprot website for O61068
PDB website for 9MEA
PDB validation report for 9MEA
doi:10.18430/M39MEA
Project details
| Title | Crystal Structure of Pyrophosphate-fructose 6-phosphate 1-phosphotransferase 1 (Pfk1) from Trichomonas vaginalis (AMP/fructose-1,6-biphosphate complex) |
| Authors | Seattle Structural Genomics Center for Infectious Disease, Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 87.53 x 87.53 x 475.64 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

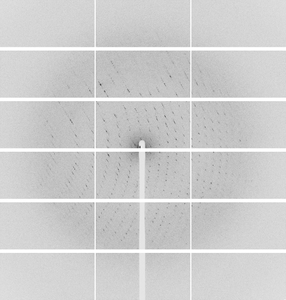

Dataset PSL-0409_3877_master.h5@##### details
| Number of frames | 900 (1 - 900) |
| Distance [mm] | 275.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 45.0 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
