Diffraction project datasets TrniA_00711_a_GL1_6or9

  • Resolution: 1.8 Å
  • Space group: P 1
Download all images (5.4 GB)

PDB website for 6OR9
PDB validation report for 6OR9

doi:10.18430/m36or9

Project details

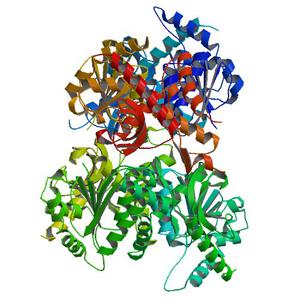

Title Structure of L-lactate dehydrogenase from Trichoplusia ni
Authors Seattle Structural Genomics Center for Infectious Disease (SSGCID)
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 63.39 x 76.48 x 79.52
Unit cell angles [°] 113.1, 109.8, 88.7

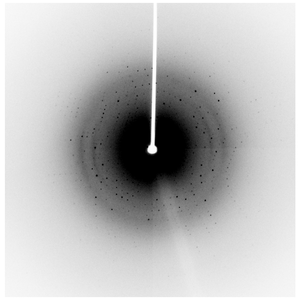

Dataset 295240h11_aa2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 15.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

Dataset 295240h11_aa_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 15.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

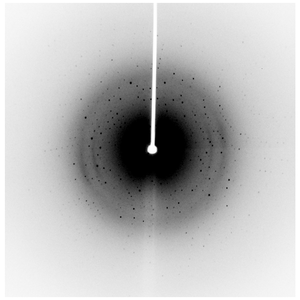

Dataset 295240h11_x_####.img details

Number of frames 720 (1 - 720)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

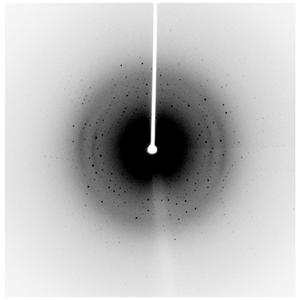

Dataset 295240h11_y2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 5.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

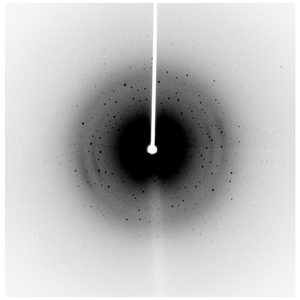

Dataset 295240h11_y_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 5.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

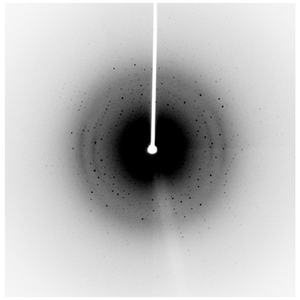

Dataset 295240h11_z2_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Phi [°] 180.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

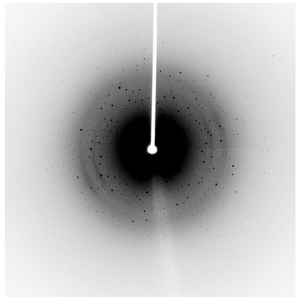

Dataset 295240h11_z_####.img details

Number of frames 360 (1 - 360)
Distance [mm] 50.0
Oscillation width [°] 0.50
Omega [°] -90.0
Kappa / Chi [°] 10.0
Wavelength [Å] 1.54178
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)

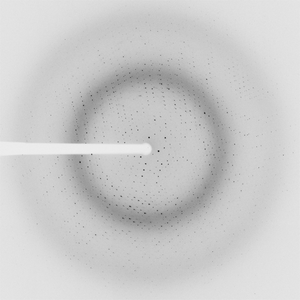

Dataset dac0-8.### details

Number of frames 270 (1 - 270)
Distance [mm] 250.0
Oscillation width [°] 1.00
Wavelength [Å] 0.97872
Experiment Date 2018-11-29
Equipment HOME_SOURCE at HOME_SOURCE (Home Source)
