Diffraction project datasets TrbrA_01480_a_WW4-Apo_9z8k
- Resolution: 2.05 Å
- Space group: I 2 2 2
Uniprot website for Q582V7
PDB website for 9Z8K
PDB validation report for 9Z8K
doi:10.18430/M39Z8K
Project details
| Title | Crystal Structure of serine/threonine-protein kinase (AEK1) from Trypanosoma brucei |
| Authors | Seattle Structural Genomics Center for Infectious Disease (SSGCID) |
| R / Rfree | 0.19 / 0.23 |
| Unit cell edges [Å] | 86.60 x 89.10 x 201.57 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

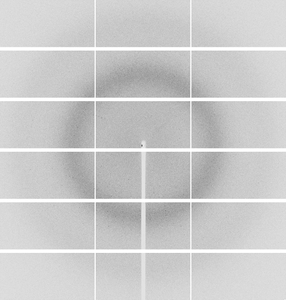

Dataset PSL-0604_9589_master.h5@##### details
| Number of frames | 1800 (1 - 1800) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.20 |
| Omega [°] | 136.202 |
| Wavelength [Å] | 0.97857 |
| Equipment | 19-ID 2 at NSLS II (National Synchrotron Light Source II) |
