Diffraction project datasets TT6518BC_4m0h

  • Method: MAD
  • Resolution: 2.5 Å
  • Space group: P 41 21 2
Download all images (2.2 GB)

PDB website for 4M0H
PDB validation report for 4M0H

doi:10.18430/M34M0H

Project details

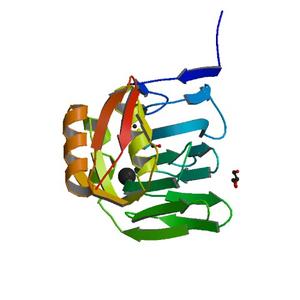

Title Crystal structure of a putative anti-sigma factor (BDI_1681) from Parabacteroides distasonis ATCC 8503 at 2.50 A resolution
Authors JOINT CENTER FOR STRUCTURAL GENOMICS (JCSG)
Bioentity None
R / Rfree 0.19 / 0.22
Unit cell edges [Å] 92.56 x 92.56 x 131.90
Unit cell angles [°] 90.0, 90.0, 90.0

Dataset 173360_1_E1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 440.1
Oscillation width [°] 0.50
Phi [°] 223.0
Wavelength [Å] 0.97963
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

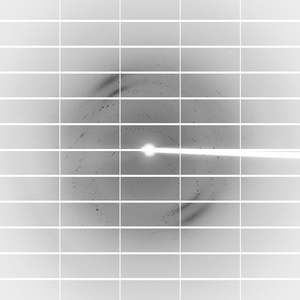

Dataset 173360_1_E2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 440.1
Oscillation width [°] 0.50
Phi [°] 223.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

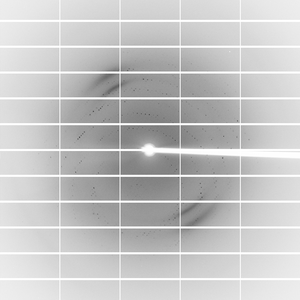

Dataset 173360_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 440.1
Oscillation width [°] 0.50
Phi [°] 223.0
Wavelength [Å] 0.97910
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
