Diffraction project datasets TT5110A_3lwx
- Method: SAD
- Resolution: 1.1 Å
- Space group: P 21 21 21
PDB website for 3LWX
PDB validation report for 3LWX
doi:10.18430/M33LWX
Project details

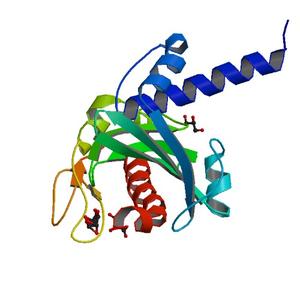

| Title | Crystal structure of Na(+)-translocating NADH-quinone reductase subunit C (YP_001302508.1) from Parabacteroides distasonis ATCC 8503 at 1.10 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.12 / 0.14 |
| Unit cell edges [Å] | 37.44 x 60.69 x 82.76 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

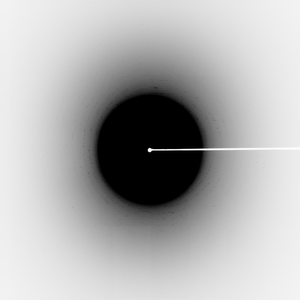

Dataset 147306_1_####.mccd details
| Number of frames | 120 (1 - 120) |
| Distance [mm] | 100.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 38.0 |
| Wavelength [Å] | 0.97861 |
| Experiment Date | 2010-01-25 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

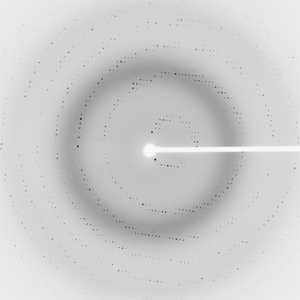

Dataset 147306_2_####.mccd details
| Number of frames | 90 (1 - 90) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 38.0 |
| Wavelength [Å] | 0.97861 |
| Experiment Date | 2010-01-25 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
