Diffraction project datasets TT4069C_4hf7

  • Method: MAD
  • Resolution: 1.77 Å
  • Space group: C 2 2 21
Download all images (2.2 GB)

PDB website for 4HF7

doi:10.18430/M34HF7

Project details

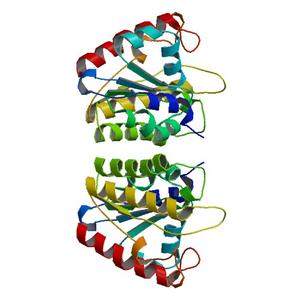

Title Crystal structure of a GDSL-like lipase (BT0569) from Bacteroides thetaiotaomicron VPI-5482 at 1.77 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.20 / 0.22
Unit cell edges [Å] 51.20 x 110.68 x 88.78
Unit cell angles [°] 90.0, 90.0, 90.0

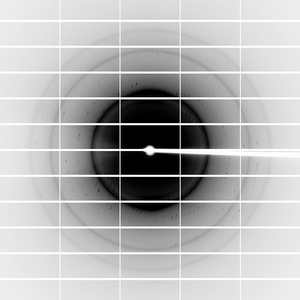

Dataset 185060_1_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 312.0
Wavelength [Å] 0.97876
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 185060_2_#####.cbf details

Number of frames 180 (1 - 180)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 312.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

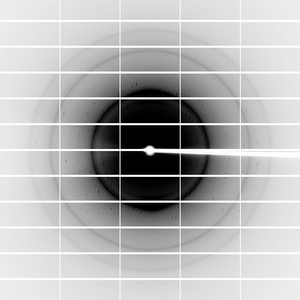

Dataset 185060_3_#####.cbf details

Number of frames 220 (1 - 220)
Distance [mm] 300.0
Oscillation width [°] 0.50
Phi [°] 312.0
Wavelength [Å] 0.97932
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
