Diffraction project datasets TT1668C_3pjy

  • Method: MAD
  • Resolution: 1.55 Å
  • Space group: P 43 21 2
Download all images (4.3 GB)

PDB website for 3PJY
PDB validation report for 3PJY

doi:10.18430/M33PJY

Project details

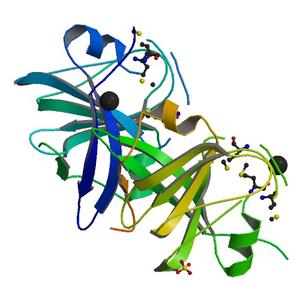

Title Crystal structure of a putative transcription regulator (R01717) from Sinorhizobium meliloti 1021 at 1.55 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.19
Unit cell edges [Å] 63.44 x 63.44 x 153.94
Unit cell angles [°] 90.0, 90.0, 90.0

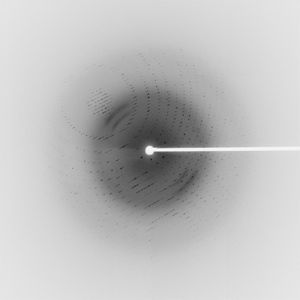

Dataset 148872_1_E1_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 77.0
Wavelength [Å] 0.97980
Experiment Date 2010-02-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 148872_1_E2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 77.0
Wavelength [Å] 0.91162
Experiment Date 2010-02-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

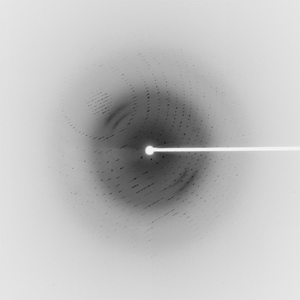

Dataset 148872_2_####.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 200.0
Oscillation width [°] 0.50
Phi [°] 77.0
Wavelength [Å] 0.97961
Experiment Date 2010-02-05
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
