Diffraction project datasets TT16411A_3n0x
Project details
| Title |

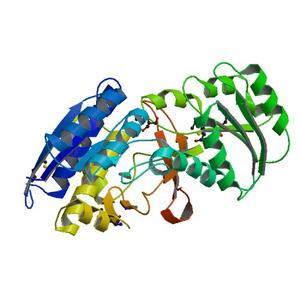

Crystal structure of an ABC-type branched-chain amino acid transporter (RPA4397) from Rhodopseudomonas palustris CGA009 at 1.50 A resolution |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.15 / 0.17 |
| Unit cell edges [Å] |
58.74 x
41.81 x
75.98
|
| Unit cell angles [°] |
90.0,
110.6,
90.0
|
Dataset 148814_1_E1_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
163.0 |
| Wavelength [Å] |
0.97949 |
| Experiment Date |
2010-02-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

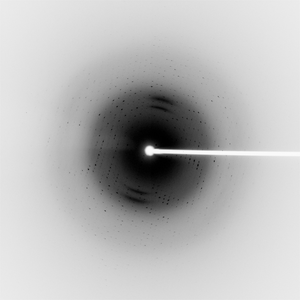

Dataset 148814_1_E2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
163.0 |
| Wavelength [Å] |
0.91837 |
| Experiment Date |
2010-02-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|

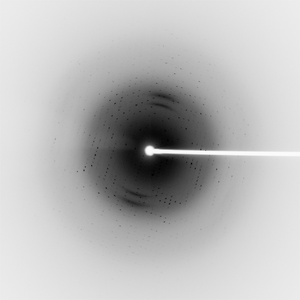

Dataset 148814_2_####.mccd details
| Number of frames |
180 (1 - 180) |
| Distance [mm] |
220.0 |
| Oscillation width [°] |
1.00 |
| Phi [°] |
163.0 |
| Wavelength [Å] |
0.97898 |
| Experiment Date |
2010-02-10 |
| Equipment |
BL11-1
at SSRL (Stanford Synchrotron Radiation Laboratory)
|
