Diffraction project datasets TM1828_2hxv

  • Method: MAD
  • Resolution: 1.8 Å
  • Space group: I 4 2 2
Download all images (3.1 GB)

PDB website for 2HXV
PDB validation report for 2HXV

doi:10.18430/M32HXV

Project details

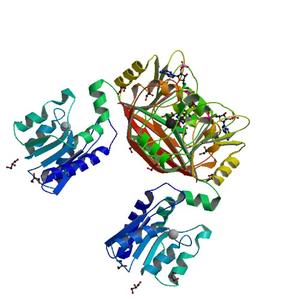

Title Crystal structure of a diaminohydroxyphosphoribosylaminopyrimidine deaminase/ 5-amino-6-(5-phosphoribosylamino)uracil reductase (tm1828) from thermotoga maritima at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.20
Unit cell edges [Å] 104.18 x 104.18 x 145.89
Unit cell angles [°] 90.0, 90.0, 90.0

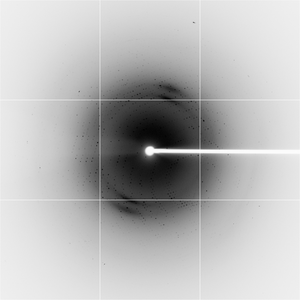

Dataset 29928_1_E1_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 155.0
Wavelength [Å] 0.97917
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

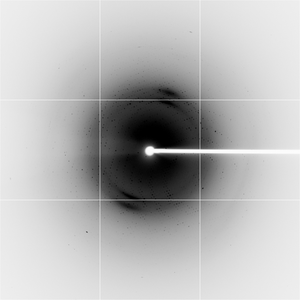

Dataset 29928_1_E2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 155.0
Wavelength [Å] 0.91837
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)

Dataset 29928_2_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 1.00
Phi [°] 155.0
Wavelength [Å] 0.97891
Equipment BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory)
