Diffraction project datasets TM1752_1vjz

  • Method: MAD
  • Resolution: 2.05 Å
  • Space group: P 43 21 2
Download all images (2.2 GB)

PDB website for 1VJZ

doi:10.18430/M31VJZ

Project details

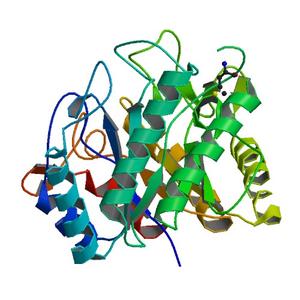

Title Crystal structure of Endoglucanase (TM1752) from Thermotoga maritima at 2.05 A resolution
Authors Joint Center for Structural Genomics (JCSG)
R / Rfree 0.17 / 0.21
Unit cell edges [Å] 64.68 x 64.68 x 202.19
Unit cell angles [°] 90.0, 90.0, 90.0

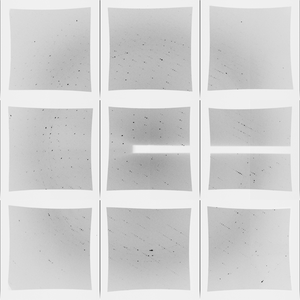

Dataset 9774_E1_1.#### details

Number of frames 111 (1 - 111)
Distance [mm] 275.0
Oscillation width [°] 0.50
Omega [°] -95.0
Phi [°] -45.01
Wavelength [Å] 0.97929
Experiment Date 2004-02-21
Equipment 19-BM at APS (Advanced Photon Source)

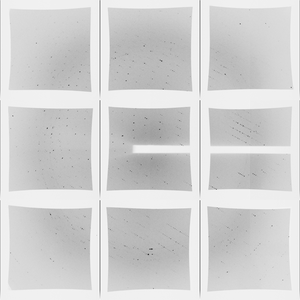

Dataset 9774_E2_1.#### details

Number of frames 111 (1 - 111)
Distance [mm] 275.0
Oscillation width [°] 0.50
Omega [°] -95.0
Phi [°] -45.01
Wavelength [Å] 0.96406
Experiment Date 2004-02-21
Equipment 19-BM at APS (Advanced Photon Source)

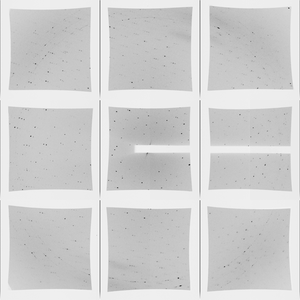

Dataset 9774_E2_2.#### details

Number of frames 70 (1 - 70)
Distance [mm] 390.0
Oscillation width [°] 1.50
Omega [°] -5.0
Phi [°] -45.01
Wavelength [Å] 0.96406
Experiment Date 2004-02-21
Equipment 19-BM at APS (Advanced Photon Source)

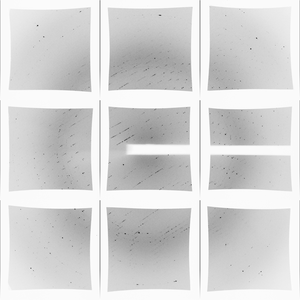

Dataset 9774_E2_3.#### details

Number of frames 199 (1 - 199)
Distance [mm] 220.0
Oscillation width [°] 0.50
Omega [°] -95.0
Phi [°] 150.0
Wavelength [Å] 0.96406
Experiment Date 2004-02-21
Equipment 19-BM at APS (Advanced Photon Source)
