Diffraction project datasets TM1744_2fm1

  • Method: Molecular Replacement
  • Resolution: 2.25 Å
  • Space group: P 21 21 21
Download all images (1.3 GB)

PDB website for 2FM1
PDB validation report for 2FM1

doi:10.18430/M32FM1

Project details

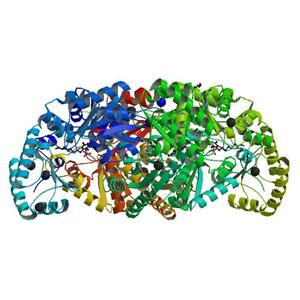

Title Crystal structure of L-ALLO-threonine aldolase (tm1744) from Thermotoga maritima at 2.25 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.22
Unit cell edges [Å] 95.61 x 100.40 x 149.65
Unit cell angles [°] 90.0, 90.0, 90.0

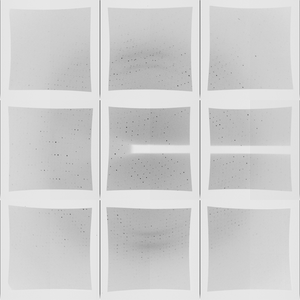

Dataset 9850_1.#### details

Number of frames 90 (1 - 90)
Distance [mm] 250.0
Oscillation width [°] 0.50
Omega [°] -40.0
Phi [°] -0.01
Wavelength [Å] 0.96411
Experiment Date 2004-02-22
Equipment 19-BM at APS (Advanced Photon Source)

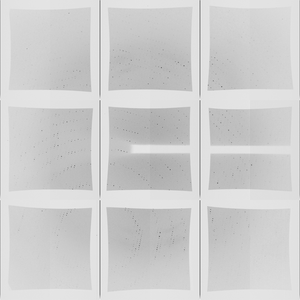

Dataset 9850_2.#### details

Number of frames 230 (1 - 230)
Distance [mm] 250.0
Oscillation width [°] 0.25
Omega [°] -95.0
Phi [°] -0.01
Wavelength [Å] 0.96411
Experiment Date 2004-02-22
Equipment 19-BM at APS (Advanced Photon Source)

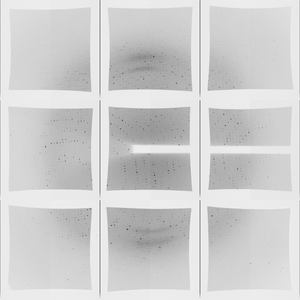

Dataset 9850_3.#### details

Number of frames 70 (1 - 70)
Distance [mm] 240.0
Oscillation width [°] 0.50
Omega [°] 3.75
Phi [°] -0.01
Wavelength [Å] 0.96411
Experiment Date 2004-02-22
Equipment 19-BM at APS (Advanced Photon Source)

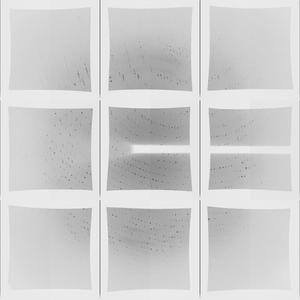

Dataset 9850_4.#### details

Number of frames 90 (1 - 90)
Distance [mm] 240.0
Oscillation width [°] 0.50
Omega [°] -64.0
Phi [°] 179.99
Wavelength [Å] 0.96411
Experiment Date 2004-02-22
Equipment 19-BM at APS (Advanced Photon Source)

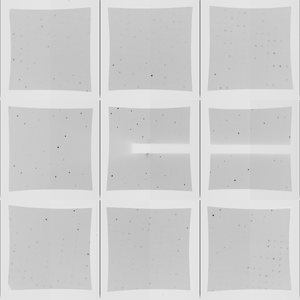

Dataset 9850_5.#### details

Number of frames 80 (1 - 80)
Distance [mm] 535.0
Oscillation width [°] 1.50
Omega [°] -2.75
Phi [°] 179.99
Wavelength [Å] 0.96411
Experiment Date 2004-02-22
Equipment 19-BM at APS (Advanced Photon Source)

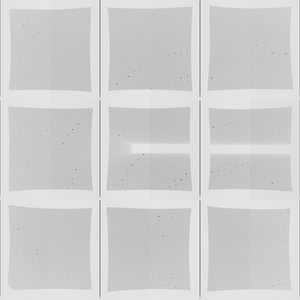

Dataset 9850_6.#### details

Number of frames 65 (1 - 65)
Distance [mm] 535.0
Oscillation width [°] 1.50
Omega [°] -90.5
Phi [°] 179.99
Wavelength [Å] 0.96411
Experiment Date 2004-02-22
Equipment 19-BM at APS (Advanced Photon Source)
