Diffraction project datasets TM1635_2q8u
- Method: MAD
- Resolution: 2.2 Å
- Space group: P 1 21 1
PDB website for 2Q8U
PDB validation report for 2Q8U
doi:10.18430/M32Q8U
Project details

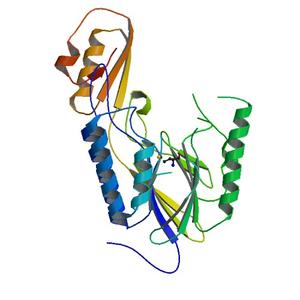

| Title | CRYSTAL STRUCTURE OF MRE11 FROM THERMOTOGA MARITIMA MSB8 (TM1635) AT 2.20 A RESOLUTION |
| Authors | Das, D., Moiani, D., Axelrod, H.L., Miller, M.D., McMullan, D., Jin, K.K., Abdubek, P., Astakhova, T., Burra, P., Carlton, D., Chiu, H.J., Clayton, T., Deller, M.C., Duan, L., Ernst, D., Feuerhelm, J., Grant, J.C., Grzechnik, A., Grzechnik, S.K., Han, G.W., Jaroszewski, L., Klock, H.E., Knuth, M.W., Kozbial, P., Krishna, S.S., Kumar, A., Marciano, D., Morse, A.T., Nigoghossian, E., Okach, L., Paulsen, J., Reyes, R., Rife, C.L., Sefcovic, N., Tien, H.J., Trame, C.B., van den Bedem, H., Weekes, D., Xu, Q., Hodgson, K.O., Wooley, J., Elsliger, M.A., Deacon, A.M., Godzik, A., Lesley, S.A., Tainer, J.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.20 / 0.24 |
| Unit cell edges [Å] | 47.60 x 113.41 x 80.95 |
| Unit cell angles [°] | 90.0, 101.8, 90.0 |

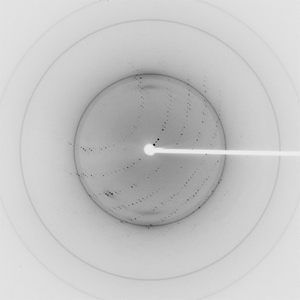

Dataset 49271_1_E1_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 284.0 |
| Wavelength [Å] | 0.97917 |
| Experiment Date | 2007-04-29 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

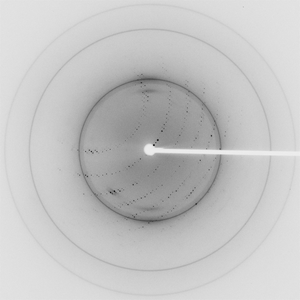

Dataset 49271_1_E2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 284.0 |
| Wavelength [Å] | 0.91837 |
| Experiment Date | 2007-04-29 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |

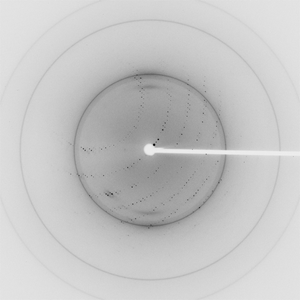

Dataset 49271_2_###.mccd details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 300.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 284.0 |
| Wavelength [Å] | 0.97891 |
| Experiment Date | 2007-04-29 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
