Diffraction project datasets TM1631_1vpq
Project details
| Title |

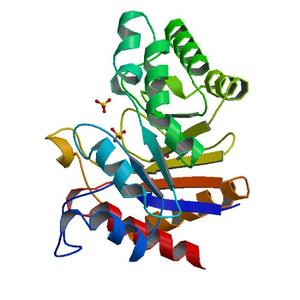

CRYSTAL STRUCTURE OF a DUF72 family protein (TM1631) FROM THERMOTOGA MARITIMA MSB8 AT 2.20 A RESOLUTION |
| Authors |
Joint Center for Structural Genomics (JCSG) |
| Bioentity |
None |
| R / Rfree |
0.21 / 0.26 |
| Unit cell edges [Å] |
53.29 x
136.24 x
80.46
|
| Unit cell angles [°] |
90.0,
90.0,
90.0
|

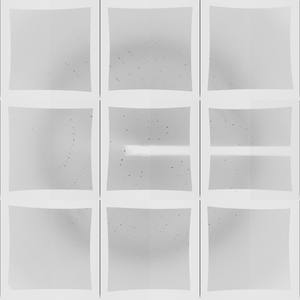

Dataset 8893_2.#### details
| Number of frames |
200 (1 - 200) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Omega [°] |
30.21 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.98036 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|

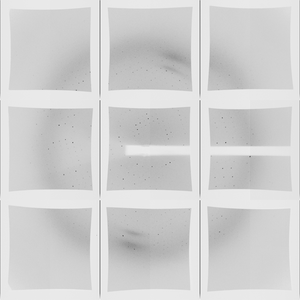

Dataset 8893_2_E1.#### details
| Number of frames |
160 (1 - 160) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Omega [°] |
78.0 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.98036 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|

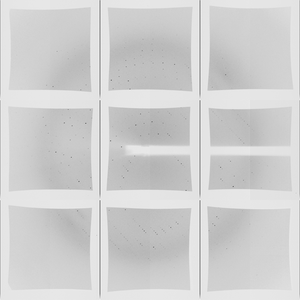

Dataset 8893_2_E2.#### details
| Number of frames |
300 (1 - 300) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.99524 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|

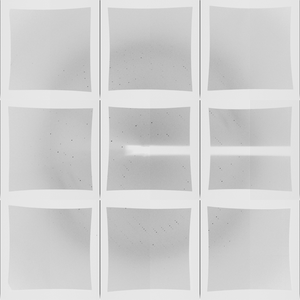

Dataset 8893_2_E3.#### details
| Number of frames |
201 (1 - 201) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.96427 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|

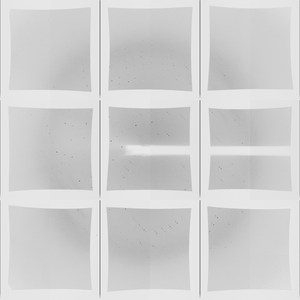

Dataset 8893_2_E4.#### details
| Number of frames |
400 (1 - 400) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.98014 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|

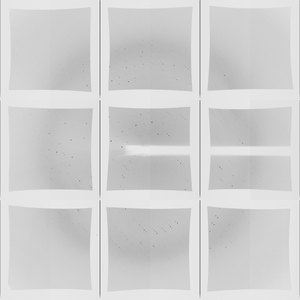

Dataset 8893_3_E1.#### details
| Number of frames |
120 (1 - 120) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.98036 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|

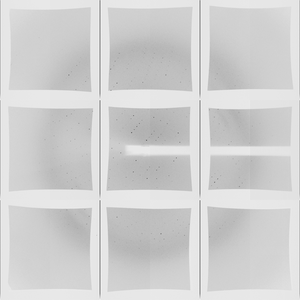

Dataset 8893_3_E3.#### details
| Number of frames |
288 (1 - 288) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Omega [°] |
48.0 |
| Phi [°] |
49.99 |
| Wavelength [Å] |
0.96428 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|
Dataset 8893_3_E4.#### details
| Number of frames |
480 (1 - 480) |
| Distance [mm] |
250.0 |
| Oscillation width [°] |
0.25 |
| Phi [°] |
179.99 |
| Wavelength [Å] |
0.98014 |
| Experiment Date |
2003-11-14 |
| Equipment |
19-BM
at APS (Advanced Photon Source)
|
