Diffraction project datasets TM1622_1vr8
- Method: MAD
- Resolution: 1.75 Å
- Space group: P 32 2 1
PDB website for 1VR8
PDB validation report for 1VR8
doi:10.18430/M31VR8
Project details

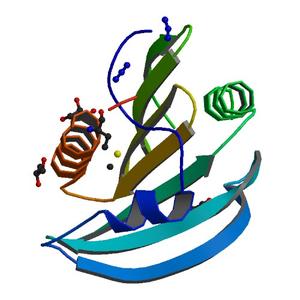

| Title | Crystal structure of GTP binding regulator (TM1622) from Thermotoga Maritima at 1.75 A resolution |
| Authors | Xu, Q., Krishna, S.S., McMullan, D., Schwarzenbacher, R., Miller, M.D., Abdubek, P., Agarwalla, S., Ambing, E., Astakhova, T., Axelrod, H.L., Canaves, J.M., Carlton, D., Chiu, H.J., Clayton, T., DiDonato, M., Duan, L., Elsliger, M.A., Feuerhelm, J., Grzechnik, S.K., Hale, J., Hampton, E., Han, G.W., Haugen, J., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Koesema, E., Kreusch, A., Kuhn, P., Morse, A.T., Nigoghossian, E., Okach, L., Oommachen, S., Paulsen, J., Quijano, K., Reyes, R., Rife, C.L., Spraggon, G., Stevens, R.C., van den Bedem, H., White, A., Wolf, G., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.15 / 0.18 |
| Unit cell edges [Å] | 57.73 x 57.73 x 87.94 |
| Unit cell angles [°] | 90.0, 90.0, 120.0 |

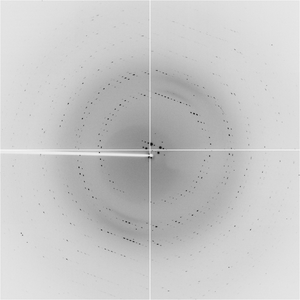

Dataset 13219_1_E1_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.99186 |
| Experiment Date | 2005-01-22 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

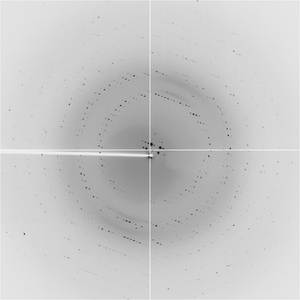

Dataset 13219_1_E2_###.img details
| Number of frames | 180 (1 - 180) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 90.0 |
| Wavelength [Å] | 0.97951 |
| Experiment Date | 2005-01-22 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

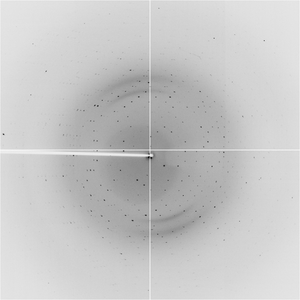

Dataset 13219_2_###.img details
| Number of frames | 240 (1 - 240) |
| Distance [mm] | 200.0 |
| Oscillation width [°] | 0.50 |
| Phi [°] | 180.0 |
| Wavelength [Å] | 0.97933 |
| Experiment Date | 2005-01-22 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
