Diffraction project datasets TM1620_1vke

  • Method: Molecular Replacement
  • Resolution: 1.56 Å
  • Space group: P 1 21 1
Download all images (1.5 GB)

PDB website for 1VKE
PDB validation report for 1VKE

doi:10.18430/M31VKE

Project details

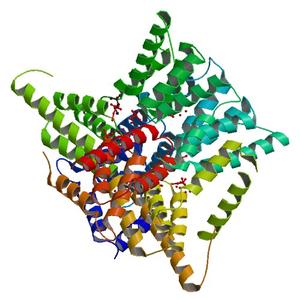

Title Crystal structure of carboxymuconolactone decarboxylase family protein possibly involved in antioxidative response (TM1620) from Thermotoga maritima at 1.56 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.16 / 0.18
Unit cell edges [Å] 67.92 x 67.97 x 90.08
Unit cell angles [°] 90.0, 97.5, 90.0

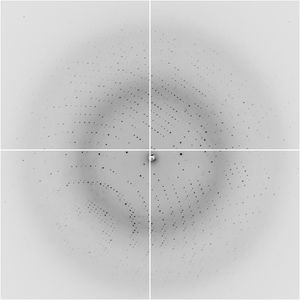

Dataset 7612_1_###.img details

Number of frames 128 (1 - 128)
Distance [mm] 150.0
Oscillation width [°] 1.00
Phi [°] 138.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-24
Equipment 5.0.1 at ALS (Advanced Light Source)

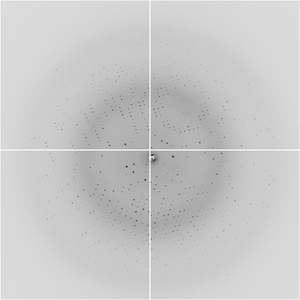

Dataset 7612_2_###.img details

Number of frames 58 (125 - 182)
Distance [mm] 150.0
Oscillation width [°] 1.00
Phi [°] 262.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-24
Equipment 5.0.1 at ALS (Advanced Light Source)

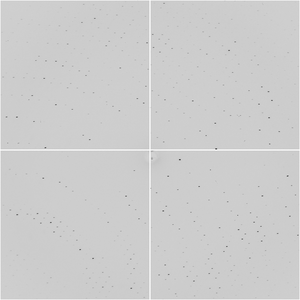

Dataset 7612_3_###.img details

Number of frames 73 (1 - 73)
Distance [mm] 330.0
Oscillation width [°] 2.50
Phi [°] 138.0
Wavelength [Å] 1.00000
Experiment Date 2003-10-24
Equipment 5.0.1 at ALS (Advanced Light Source)
