Diffraction project datasets TM1612_2r9v
- Method: SAD
- Resolution: 2.1 Å
- Space group: P 41 21 2
PDB website for 2R9V
PDB validation report for 2R9V
doi:10.18430/M32R9V
Project details

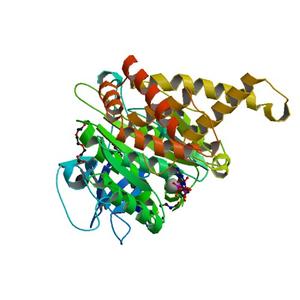

| Title | Crystal structure of ATP synthase subunit alpha (TM1612) from Thermotoga maritima at 2.10 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.18 / 0.22 |
| Unit cell edges [Å] | 97.41 x 97.41 x 219.38 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

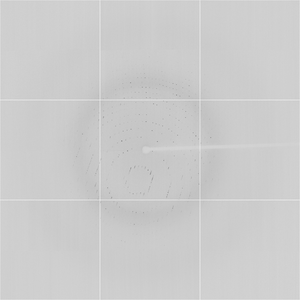

Dataset 60026_1_###.img details
| Number of frames | 450 (1 - 450) |
| Distance [mm] | 250.0 |
| Oscillation width [°] | 0.20 |
| Phi [°] | -88.0 |
| Wavelength [Å] | 0.97960 |
| Experiment Date | 2007-08-30 |
| Equipment | 8.2.2 at ALS (Advanced Light Source) |
