Diffraction project datasets TM1585_2b8n
- Method: MAD
- Resolution: 2.53 Å
- Space group: P 21 21 21
PDB website for 2B8N
PDB validation report for 2B8N
doi:10.18430/M32B8N
Project details

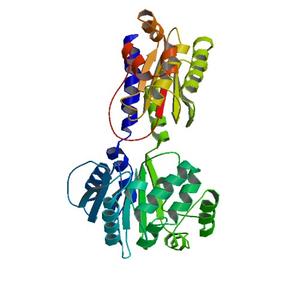

| Title | Crystal structure of Glycerate kinase (EC 2.7.1.31) (tm1585) from THERMOTOGA MARITIMA at 2.70 A resolution |
| Authors | Schwarzenbacher, R., McMullan, D., Krishna, S.S., Xu, Q., Miller, M.D., Canaves, J.M., Elsliger, M.A., Floyd, R., Grzechnik, S.K., Jaroszewski, L., Klock, H.E., Koesema, E., Kovarik, J.S., Kreusch, A., Kuhn, P., McPhillips, T.M., Morse, A.T., Quijano, K., Spraggon, G., Stevens, R.C., van den Bedem, H., Wolf, G., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| Bioentity | None |
| R / Rfree | 0.18 / 0.25 |
| Unit cell edges [Å] | 61.95 x 85.17 x 172.51 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

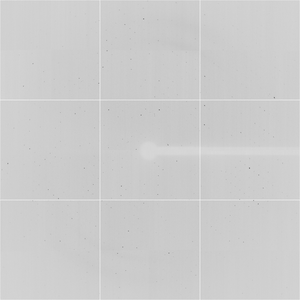

Dataset 25c22p3_1_E1_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 23.0 |
| Wavelength [Å] | 0.97913 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |

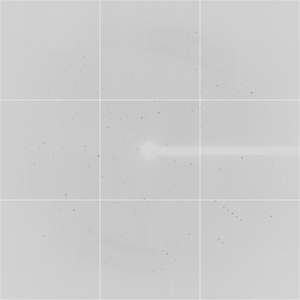

Dataset 25c22p3_1_E2_###.img details
| Number of frames | 313 (1 - 313) |
| Distance [mm] | 500.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 23.0 |
| Wavelength [Å] | 0.90497 |
| Equipment | BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory) |
