Diffraction project datasets TM1559_3r13

  • Method: MAD
  • Resolution: 1.83 Å
  • Space group: P 1 21 1
Download all images (6.3 GB)

PDB website for 3R13
PDB validation report for 3R13

doi:10.18430/M33R13

Project details

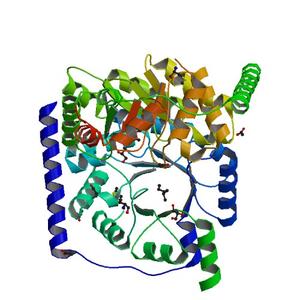

Title Crystal structure of a Deoxyribose-phosphate aldolase (TM_1559) from THERMOTOGA MARITIMA at 1.83 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.15 / 0.19
Unit cell edges [Å] 53.90 x 52.48 x 85.46
Unit cell angles [°] 90.0, 95.6, 90.0

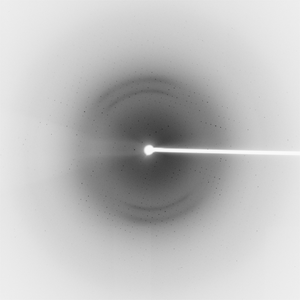

Dataset 14795_1_E1_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 280.0
Oscillation width [°] 1.50
Phi [°] 156.0
Wavelength [Å] 0.97946
Experiment Date 2005-03-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

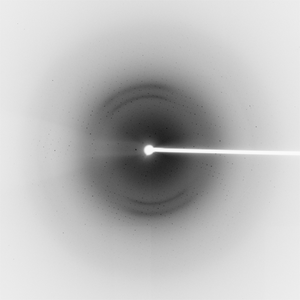

Dataset 14795_1_E2_###.mccd details

Number of frames 120 (1 - 120)
Distance [mm] 280.0
Oscillation width [°] 1.50
Phi [°] 156.0
Wavelength [Å] 0.89194
Experiment Date 2005-03-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

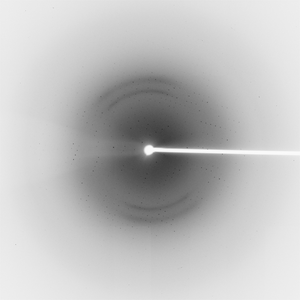

Dataset 14795_2_###.mccd details

Number of frames 105 (1 - 105)
Distance [mm] 280.0
Oscillation width [°] 1.50
Phi [°] 156.0
Wavelength [Å] 0.97929
Experiment Date 2005-03-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)

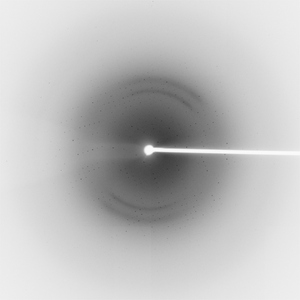

Dataset 14795_2_###.mccd details

Number of frames 100 (121 - 220)
Distance [mm] 280.0
Oscillation width [°] 1.50
Phi [°] 336.0
Wavelength [Å] 0.97929
Experiment Date 2005-03-31
Equipment BL9-2 at SSRL (Stanford Synchrotron Radiation Laboratory)
