Diffraction project datasets TM1553_1vrm
- Method: MAD
- Resolution: 1.58 Å
- Space group: P 21 21 21
PDB website for 1VRM
doi:10.18430/M31VRM
Project details

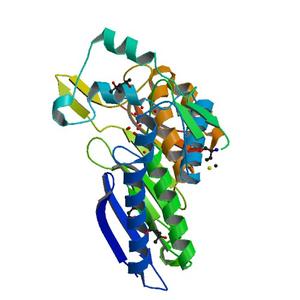

| Title | Crystal structure of the apbe protein (tm1553) from thermotoga maritima msb8 at 1.58 A resolution |
| Authors | Han, G.W., Sri Krishna, S., Schwarzenbacher, R., McMullan, D., Ginalski, K., Elsliger, M.A., Brittain, S.M., Abdubek, P., Agarwalla, S., Ambing, E., Astakhova, T., Axelrod, H., Canaves, J.M., Chiu, H.J., DiDonato, M., Grzechnik, S.K., Hale, J., Hampton, E., Haugen, J., Jaroszewski, L., Jin, K.K., Klock, H.E., Knuth, M.W., Koesema, E., Kreusch, A., Kuhn, P., Miller, M.D., Morse, A.T., Moy, K., Nigoghossian, E., Oommachen, S., Ouyang, J., Paulsen, J., Quijano, K., Reyes, R., Rife, C., Spraggon, G., Stevens, R.C., van den Bedem, H., Velasquez, J., Wang, X., West, B., White, A., Wolf, G., Xu, Q., Hodgson, K.O., Wooley, J., Deacon, A.M., Godzik, A., Lesley, S.A., Wilson, I.A. |
| R / Rfree | 0.16 / 0.19 |
| Unit cell edges [Å] | 57.74 x 76.95 x 86.59 |
| Unit cell angles [°] | 90.0, 90.0, 90.0 |

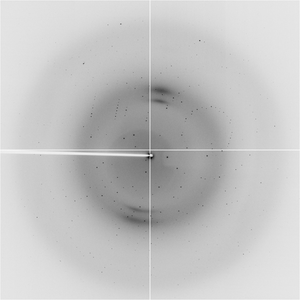

Dataset 13185_2_E1_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 333.0 |
| Wavelength [Å] | 0.97951 |
| Experiment Date | 2005-01-22 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

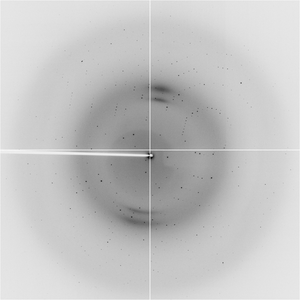

Dataset 13185_2_E2_###.img details
| Number of frames | 360 (1 - 360) |
| Distance [mm] | 170.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 333.0 |
| Wavelength [Å] | 1.00004 |
| Experiment Date | 2005-01-22 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |

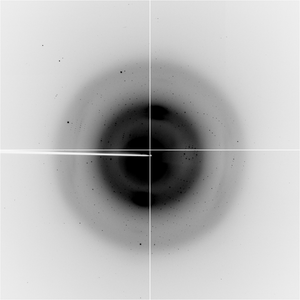

Dataset 13185_3_###.img details
| Number of frames | 400 (1 - 400) |
| Distance [mm] | 120.0 |
| Oscillation width [°] | 0.25 |
| Phi [°] | 328.0 |
| Wavelength [Å] | 0.97933 |
| Experiment Date | 2005-01-22 |
| Equipment | 8.2.1 at ALS (Advanced Light Source) |
