Diffraction project datasets TM1521_1o5k

  • Method: Molecular Replacement
  • Resolution: 1.8 Å
  • Space group: C 2 2 21
Download all images (3.1 GB)

PDB website for 1O5K
PDB validation report for 1O5K

doi:10.18430/M31O5K

Project details

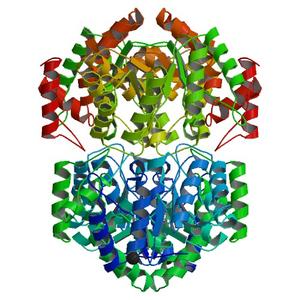

Title Crystal structure of Dihydrodipicolinate synthase (TM1521) from Thermotoga maritima at 1.80 A resolution
Authors Joint Center for Structural Genomics (JCSG)
Bioentity None
R / Rfree 0.14 / 0.19
Unit cell edges [Å] 54.67 x 140.77 x 155.94
Unit cell angles [°] 90.0, 90.0, 90.0

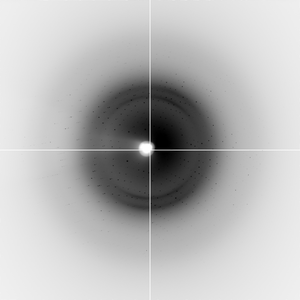

Dataset 2997_1_###.img details

Number of frames 75 (1 - 75)
Distance [mm] 150.0
Oscillation width [°] 0.50
Wavelength [Å] 0.90000
Experiment Date 2003-04-16
Equipment 14-BM-C at APS (Advanced Photon Source)

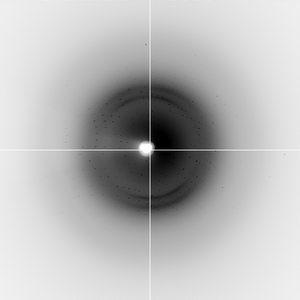

Dataset 2997_2_###.img details

Number of frames 25 (1 - 25)
Distance [mm] 150.0
Oscillation width [°] 0.50
Wavelength [Å] 0.90000
Experiment Date 2003-04-16
Equipment 14-BM-C at APS (Advanced Photon Source)

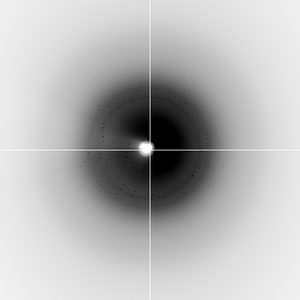

Dataset 2997_3_###.img details

Number of frames 75 (1 - 75)
Distance [mm] 150.0
Oscillation width [°] 0.50
Phi [°] 330.0
Wavelength [Å] 0.90000
Experiment Date 2003-04-16
Equipment 14-BM-C at APS (Advanced Photon Source)

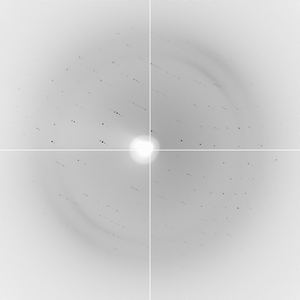

Dataset 2997_4_###.img details

Number of frames 90 (1 - 90)
Distance [mm] 280.0
Oscillation width [°] 1.00
Phi [°] 330.0
Wavelength [Å] 0.90000
Experiment Date 2003-04-16
Equipment 14-BM-C at APS (Advanced Photon Source)
