Diffraction project datasets TM1520_1vm6
- Method: Molecular Replacement
- Resolution: 2.27 Å
- Space group: C 1 2 1
PDB website for 1VM6
PDB validation report for 1VM6
doi:10.18430/M31VM6
Project details

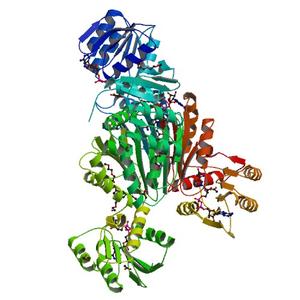

| Title | Crystal structure of Dihydrodipicolinate reductase (TM1520) from Thermotoga maritima at 2.27 A resolution |
| Authors | Joint Center for Structural Genomics (JCSG) |
| Bioentity | None |
| R / Rfree | 0.17 / 0.21 |
| Unit cell edges [Å] | 133.08 x 109.22 x 112.60 |
| Unit cell angles [°] | 90.0, 119.2, 90.0 |

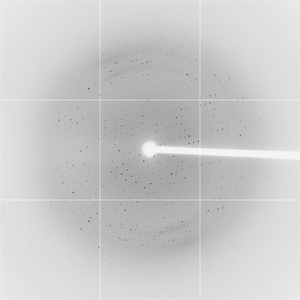

Dataset 10706_1_###.img details
| Number of frames | 185 (1 - 185) |
| Distance [mm] | 380.0 |
| Oscillation width [°] | 1.00 |
| Phi [°] | 75.0 |
| Wavelength [Å] | 0.98008 |
| Equipment | BL11-1 at SSRL (Stanford Synchrotron Radiation Laboratory) |
